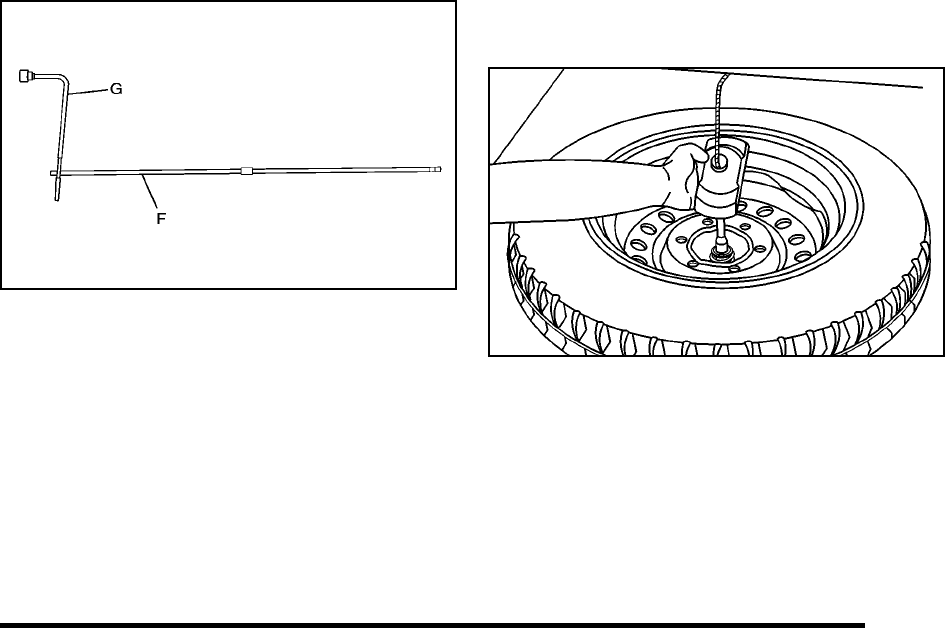

1. Assemble the wheel wrench (G) to one or two of
the jack handle extensions and the hoist extension.
Insert the hoist extension end through the hole in
the rear bumper.
2. Be sure the hoist extension end connects to the
hoist shaft (E). The chiseled end of the extension is
used to lower the spare tire.
3. Turn the wheel wrench counterclockwise to lower
the spare tire to the ground. Continue to turn the
wheel wrench until the spare tire can be pulled out
from under the vehicle.
If the spare tire does not lower to the ground, the
secondary latch is engaged causing the tire not to
lower. See Secondary Latch System on page 6‑93.
4. When the tire has been lowered, pull the tire
toward you so you can reach the tire retainer and
pull it up through the wheel opening.
If you have a vehicle which was completed from a
cab and chassis, refer to the information from body
supplier/installer.
The spare tire is a full‐size tire, like the other tires
on the vehicle.
5. Put the spare tire near the flat tire.
6-85
