MTPX Plus Twisted Pair Matrix Switchers • Operation
Example 5: Grouping inputs and outputs
In the following an example, several switcher inputs and outputs are assigned to
groups. The steps show the front panel indications that result from your action.

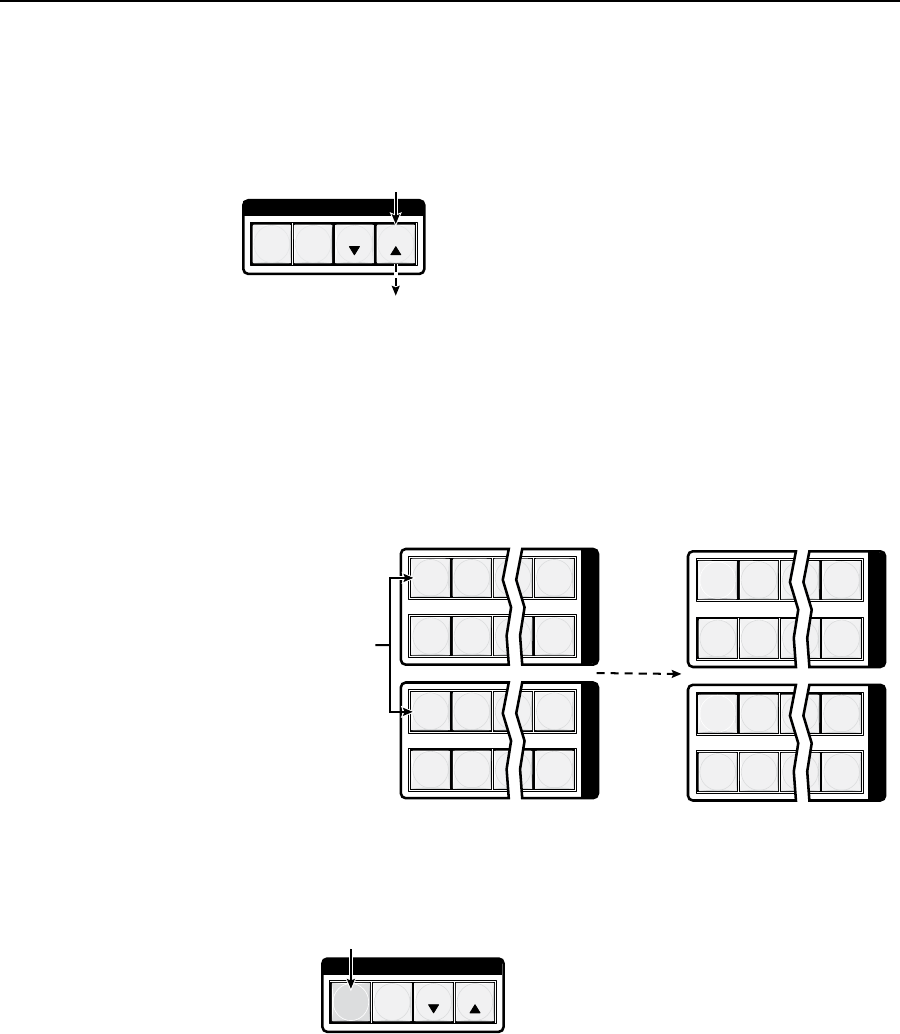

1. Press and release the Esc button (figure 3-29).
C O N T R O L
PRESET
ENTER
ESCVIEW
Press the Esc button to clear all selections.
The button flashes once.
Figure 3-29 — Clear all selections
2. To enter I/OGroup mode, simultaneously press and hold the Input 1 and
Output 1 buttons for approximately 2 seconds and then release the buttons
(figure 3-30).
1 2 5 16
17 18 11 32
1 2 5 16
17 18 11 32
I
N
P
U
T
S
O
U
T
P
U
T
S
1 2 5 16
17 18 11 32
1 2 5 16
17 18 11 32
I
N
P
U
T
S
O
U
T
P
U
T
S
•
Press and hold
the Input 1 button
and Output 1 button.
Release the Input 1 button
and Output 1 button.
Ungrouped input and
output buttons light.
2 seconds
Figure 3-30 — Select I/O Group mode
3. Press and release the Enter button to select group 1 (figure 3-31).
C O N T R O L
PRESET
ENTER
ESCVIEW
1324
Press and release the Enter button to select group 1.
The button lights amber to indicate the selection.
Group #
Figure 3-31 — Select an I/O group
N
 I/Ogroupsareprotectedwhenfrontpanellockmode2isselected.Youcanview
thegroupsinlockmode2,butyoucannotchangethemfromthefrontpanel.See
“SettingthefrontpanelLocks(Executivemodes)”onpage3-46.
Iffrontpanellockmode2isselectedandyoutrytoperformstep4, the actions
are ignored and the Enter, Video, and Audio buttons flash.
