Hardware status — Provides an overall view of the status of the matrix switcher,
including the power supply voltages, the temperature status, the Remote
RS-232/RS-422 port configuration, and the installed and updated firmware
status (figure 5-17).
Green — Proper operation.
Red — Component has failed.
White — Not displayed for the MTPX Plus.

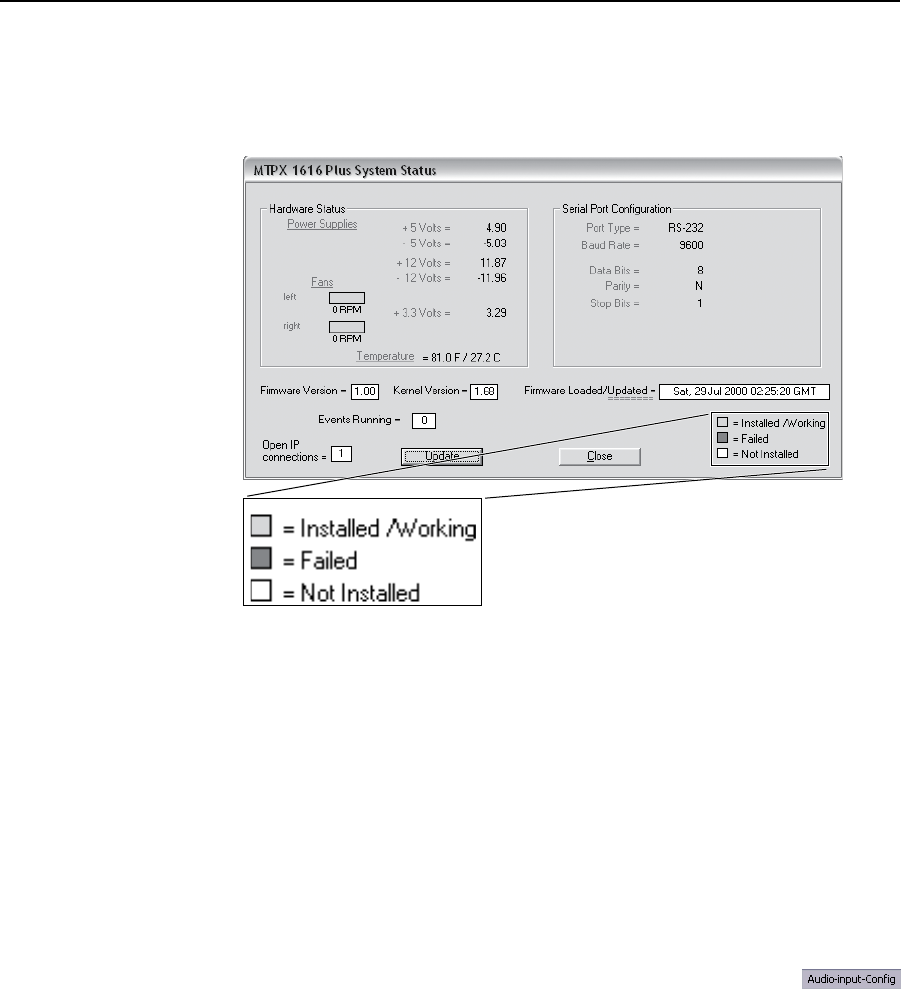

Figure 5-17 — Status window
Name presets — Allows you to assign a name to each of the 32 memory presets.
N
Presetnamesarelimitedto12upper-andlower-casealphanumericcharacters,
space, and the _ and / characters. The following characters are invalid in
presetnames:+~,@=‘[]{}<>’“;:|\and?.
Show RS-232 strings — Displays the RS-232 commands that are used by the
current configuration. You can refer to these for SIS programming.
I/O Group settings — Displays the inputs/outputs groups window, which allows
you to assign inputs and outputs to any one of four groups (or no group).
Initialize — Initializes and clears any or all of the following: ties, presets, audio
configuration, preset names, icon names, and icons.
Audio-input Configuration selection
Displays the audio gain level setting for a single input or for all inputs
and allows you to change it. The level is expressed as the magnitude (number
of decibels) and polarity (positive, gain or negative, attenuation) of the audio
adjustment.
