SKU 40597 For technical questions, please call 1-800-444-3353. PAGE 8
9. Attach the two Fender Seats (part #25) to the Left and Right Spring Hangers
(parts #6, #7), using the Bolts (part #47), Spring Washers (part #66), and Nuts
(part #61). Then attach the two Fenders (part #26) to the two Fender Seats,
using the Bolts (part #47), Spring Washers (part #66), and Nuts (part #61).
(See Figure E.)
10. Attach the two Leaf Springs (part #8) to the Left and Right Spring Hangers
(parts #6, #7), using the Bolts (part #54), and Nylon Nuts (part #63). Insert a
Cotter Pin (part #72) through the holes in the end of the Bolts and spread the
Cotter Pins. (See Figure E.)
11.
With assistance, turn the Trailer upside down.
Place the Axle (part #9) on top
of both Leaf Springs (part #8). Place the two Spring Plates (part #27) below
the Leaf Springs. On each end of the Axle, insert two U-Bolts (part #28)
downward over the Axle and through the mounting holes in each of the Spring
Plates. Then secure the Axle and Leaf Springs, using Flat Washers (part #70),
Spring Washers (part #66), and Nuts (part #61). (See Figure F,
next page.)
46
61
66
70
46
61
66
70
LEFT SPRING
HANGER (#6)
FENDER
(#26)
FENDER
SEAT
ASSY.
(#25)
47
61
66
54
63
54
63
LEAF
SPRING
(#8)
SPRING
PLATE
(#27)
70
66
61
“U-BOLT (#28)
FRONT LEFT
SIDE RAIL
(#3)
REAR LEFT
SIDE RAIL
(#21)
FRONT RIGHT
SIDE RAIL
(#4)
REAR RIGHT
SIDE RAIL
(#22)
AXLE (#9)
WHEEL (#81)
BEARING (#76)
WASHER (#34)
NUT (#64)
COTTER PIN (#72)
DUST COVER (#33)

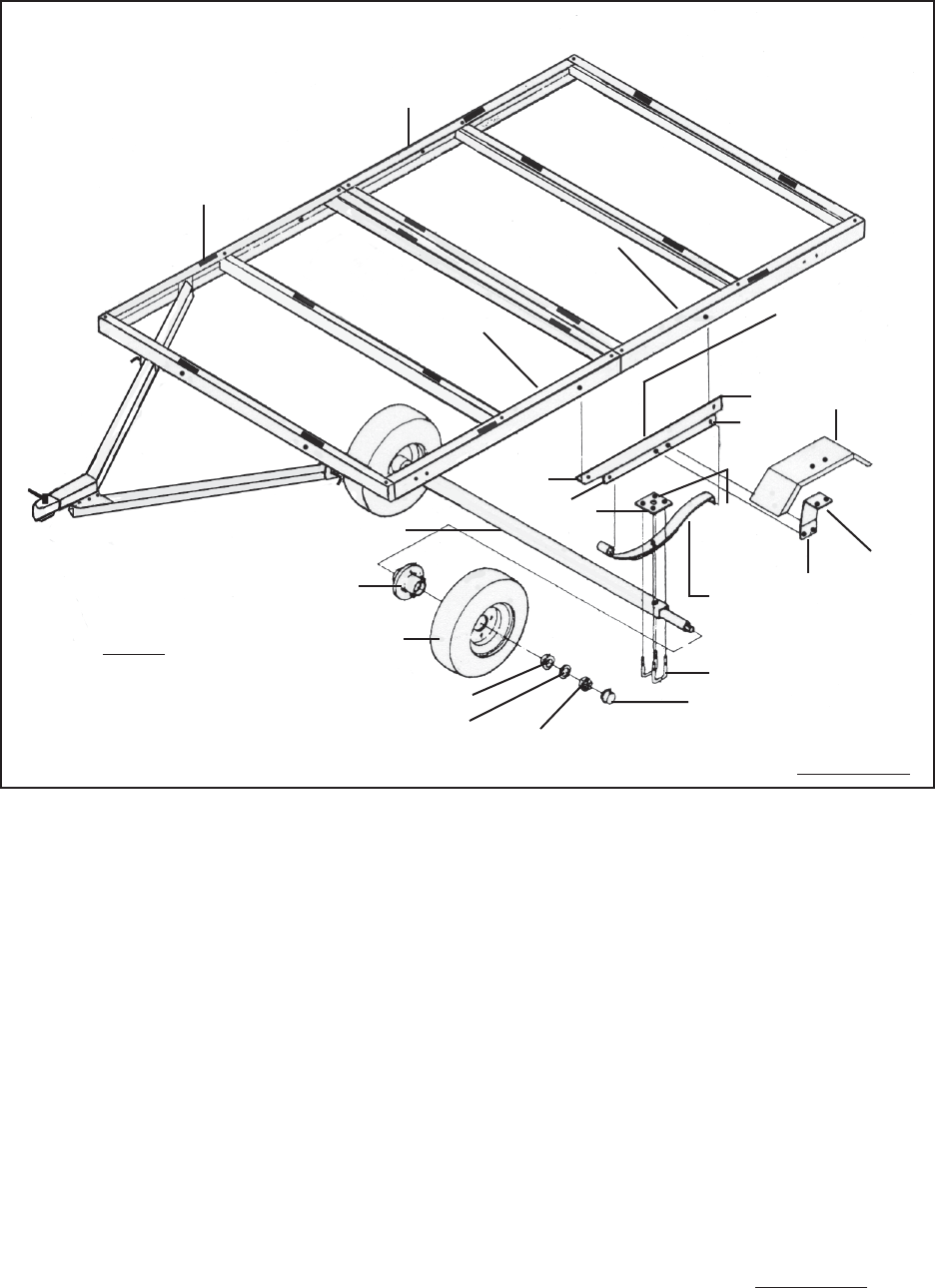

FIGURE E
NOTE:
PRIOR TO USING,
LUBRICATE THE
HUB ASSEMBLY.
(#12, #75, #79)
See note on Page 9
HUB (#12, #75, #79)
