SKU 40597 For technical questions, please call 1-800-444-3353. PAGE 11
21. Leave about 18” of wire beyond the Coupler (part #1), and run the Wiring
Harness along the inside of the Connection Rail (part #2) to the Front
Right Side Rail (part #4). Then, split the Yellow/Brown Wires from the Green/
BrownWires. (See Figure H.)
22. Run the Yellow/Brown Wires along the inside of the Front Cross Member
(part #5) to the Side Running Light (part #83) located on the Front Left Side
Rail (part #3). Then, run the Green/Brown Wires along the inside of the Front
Right Side Rail (part #4) to the other Side Running Light. (See Figure H.)
in order to provide a proper grounding surface for the exposed portion of
the White Gound Wire. (See Figure H.)
WIRING HARNESS
CONNECTOR PLUG
BOLT
(#47)
WHTE GROUND WIRE
BROWN
YELLOW
WIRE LEAD
FROM
SIDE RUNNING LIGHT
(#83)
BROWN
YELLOW
BLACK
RED
GREEN
BROWN
WIRE LEAD
FROM
SIDE RUNNING LIGHT
(#83)
GREEN
BROWN
BLACK
RED
LEFT
TAIL
LIGHT
(#80)
RIGHT
TAIL
LIGHT
(#82)

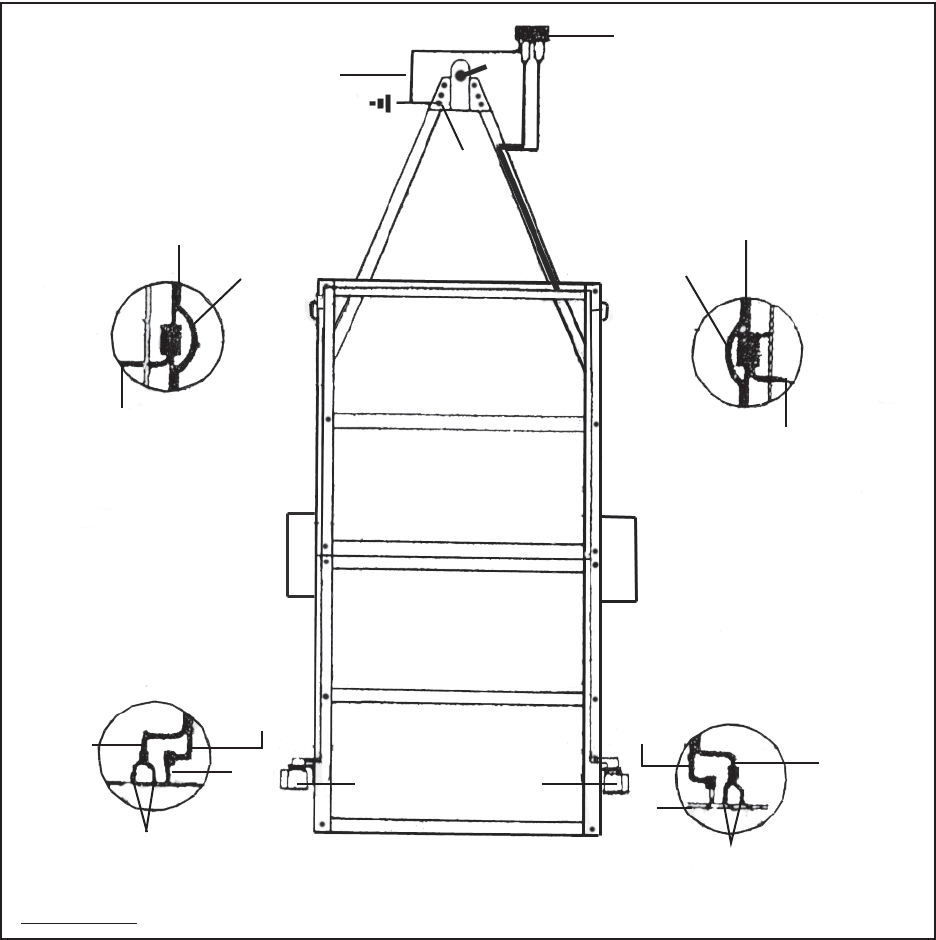

FIGURE H
See Wiring Diagram on Page 12.
