SKU 40597 For technical questions, please call 1-800-444-3353. PAGE 7
TO CENTER OF TRAILER
TO REAR OF TRAILER
REAR RIGHT SIDE RAIL
(#22)
REAR LEFT SIDE RAIL
(#21)
CROSS MEMBER
(#20)
CROSS MEMBER
(#20)
CROSS MEMBER
(#20)
47
61
66
70
FIGURE C
FRONT PORTION
REAR PORTION
48
61
66
70
48
61
66
70
48
61
66
70
48
61
66
70
85
85
85
85
FIGURE D

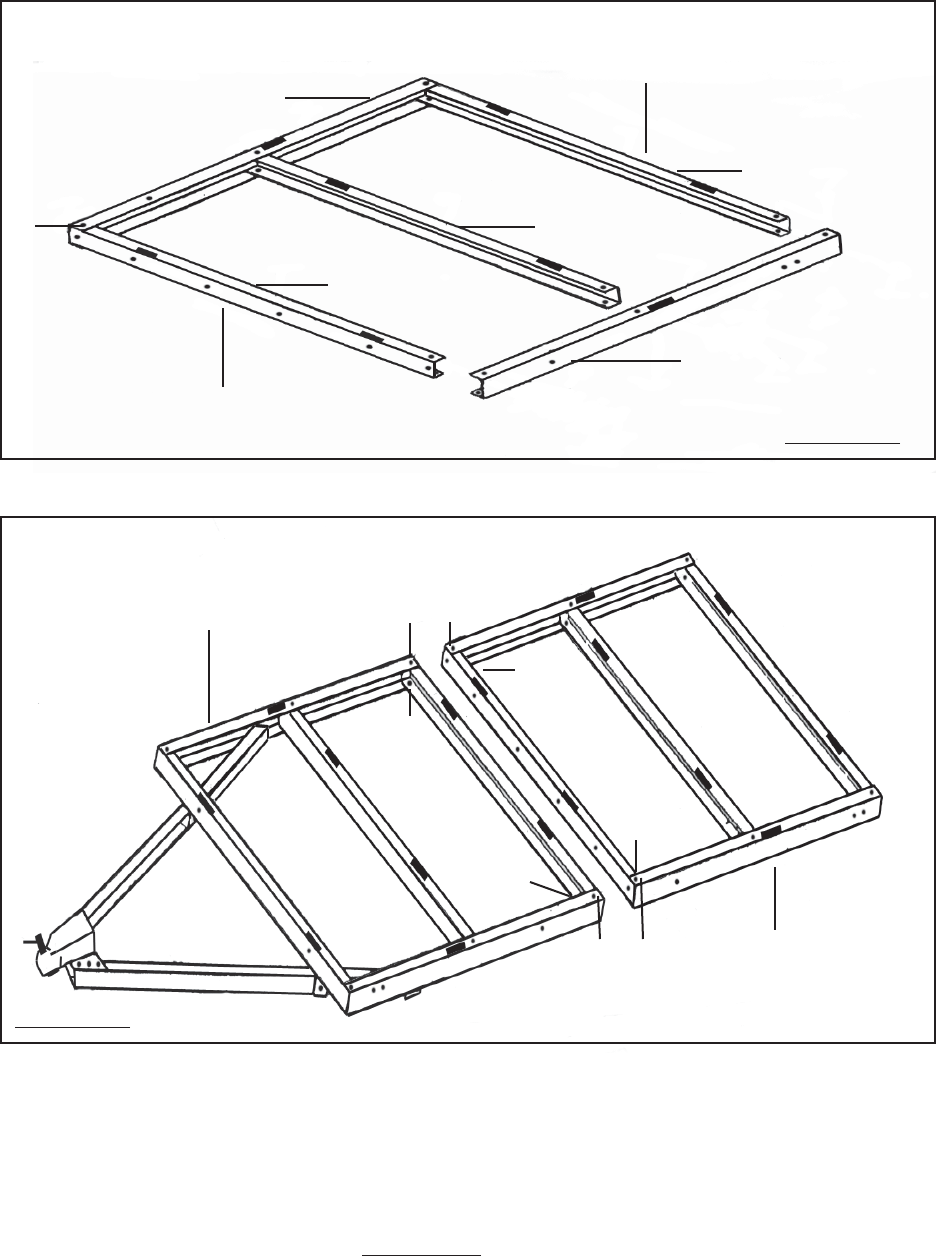

8. Attach the Left Spring Hanger (part #6) to the Front and Rear Left Side Rails
(parts #3, #21), using the Bolts (part #46), Flat Washers (part #70), Spring Wash-
ers (part #66), and Nuts (part #61). Then, attach the Right Spring Hanger
(part #7) to the Front and Rear Right Side Rails (parts #4, #22), using the Bolts
(part #46), Flat Washers (part #70), Spring Washers (part #66), and Nuts
(part #61). (See Figure E,
next page.)
