SKU 40597 For technical questions, please call 1-800-444-3353. PAGE 14

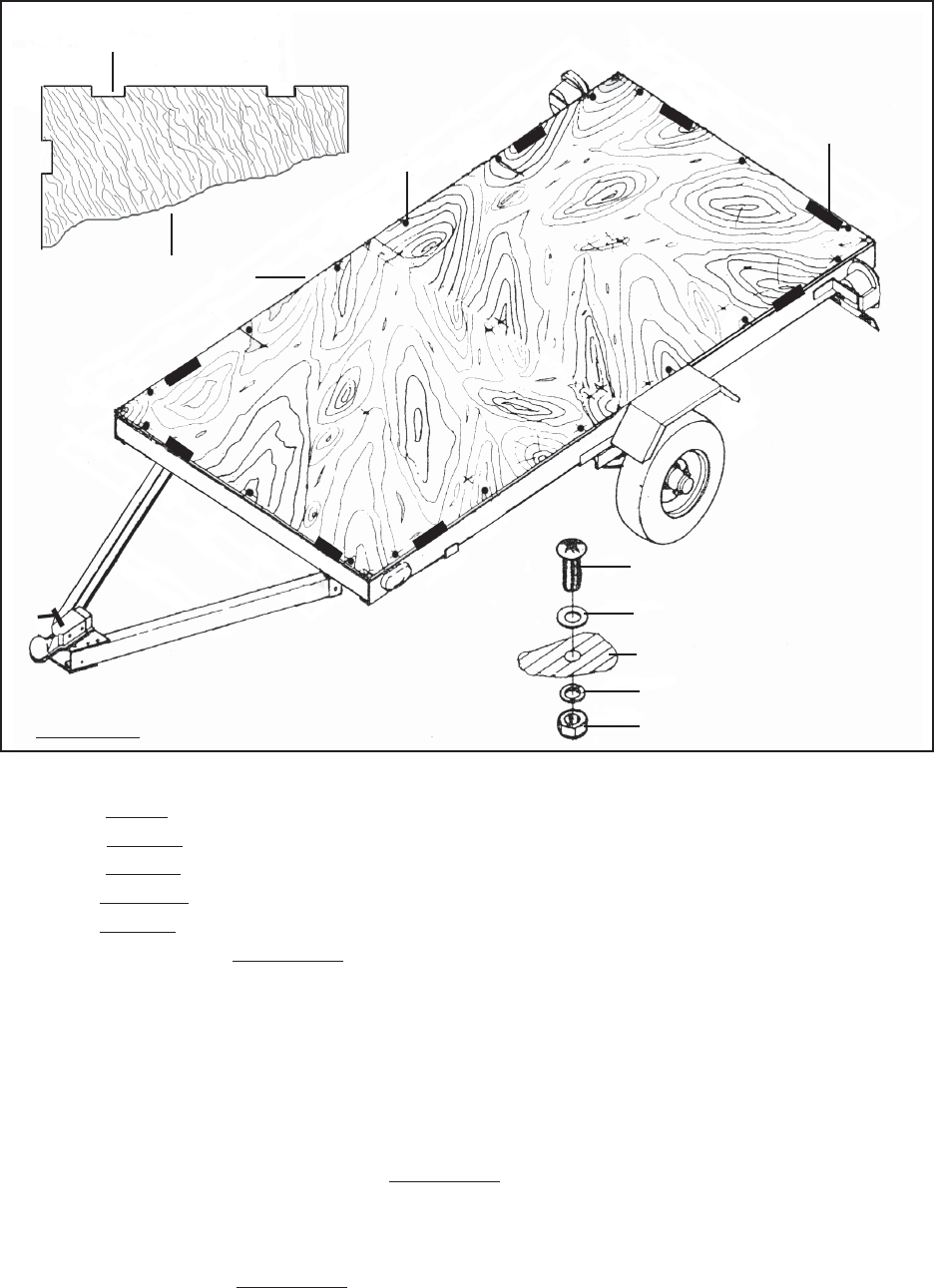

3-1/2” X 1” SLOTS
STAKE SLOT
3/4” PLYWOOD
3/8” DIA.
MOUNTING
HOLES
3/8” CROSS HEAD BOLT
3/8” FLAT WASHER
3/4” PLYWOOD
3/8” SPRING WASHER
3/8” HEX NUT
FIGURE I
F.
Qty. 8: 3/8” x 2-3/8” Hex Bolt (not included).
G.
Qty. 48: 3/8” x 2-3/8” Hex Bolt (not included).
H.
Qty. 72: 3/8” Spring Washer (not included).
I.
Qty. 112: 3/8” Flat Washer (not included).
J.
Qty. 72: 3/8” Hex Nut (not included).
(See Figure J,
next page.)
32. Cut the Stakes, Front End Rails, Back End Rails, and Side rails to the sizes
indicated in the illustration and drill 3/8” diameter mounting holes where shown.
(See Figure J.)
33. To determine where to drill 3/8” holes in the Stakes, place the eight Stakes in the
eight Stake Slots of the Trailer frame and mark with a pencil.
(See Figure J, and Figure K,
next page.)
34. Attach the Side Rails and Front End/Back End Rails to the Stakes, using
3/8” x 3-3/8” Cross Head Bolts, 3/8” Flat Washers, and 3/8” Nuts.
(See Figure K,
next page.)
