SYSTEM WIRING CONNECTIONS
1
A. Finish routing the systems wiring harnesses to their destination points and secure all system wiring using the supplied tie
wraps (Y).
B. Make the wiring connections as shown. Vehicle specific wiring diagrams begin on page 42.
Make sure to test each vehicle circuit prior to making any connections - All vehicle wiring is subject to
change.
Instructions on proper wiring connection methods and circuit testing can be found in the reference section of this
manual.
C. After completing all the system wiring, follow the instructions beginning on the next page to program and test the systems
functionality.
NOTE: The system will not function properly if not programmed.

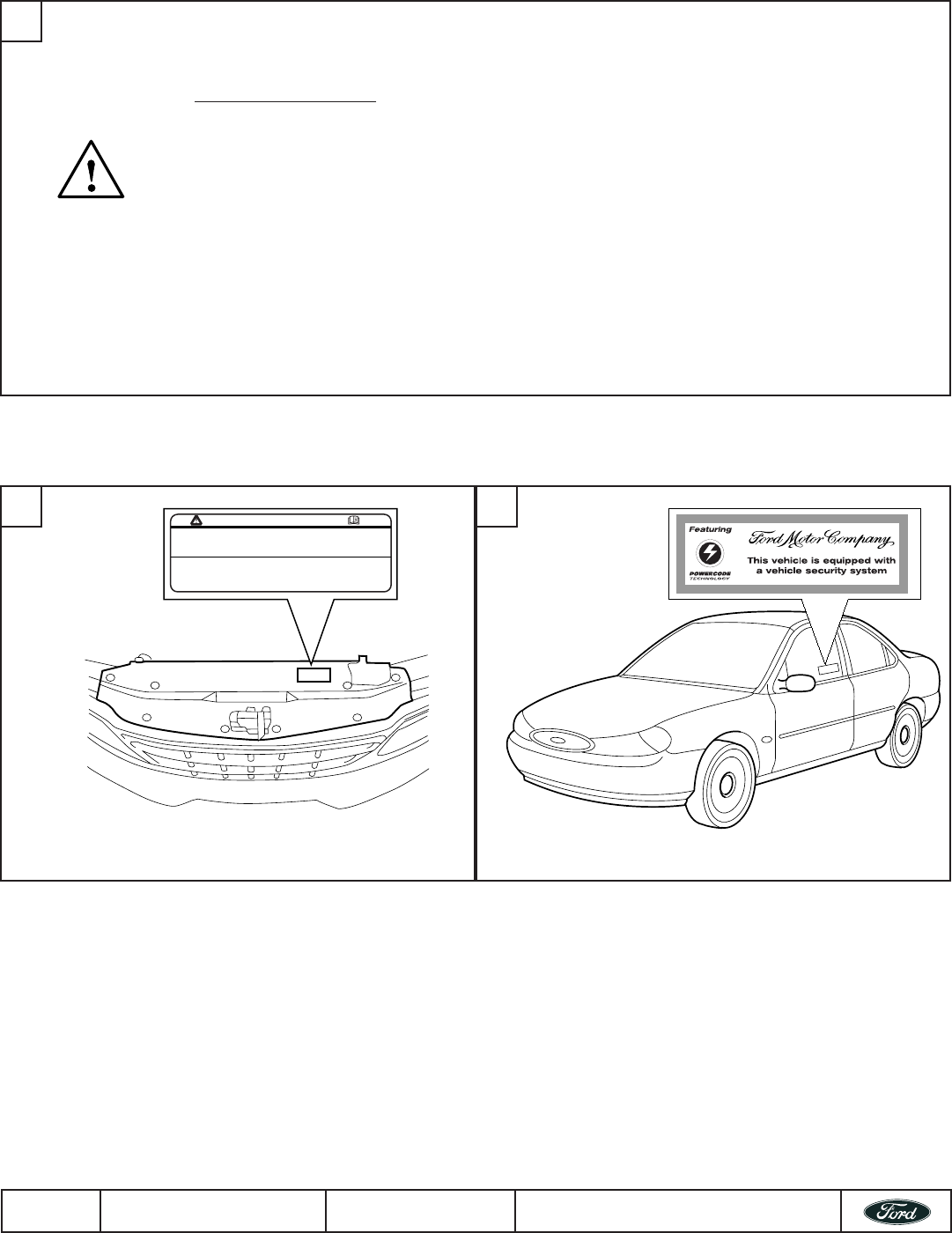

RMST SYSTEMS ONLY - Install the Orange
warning label on the radiator shroud (or similar
area).
VSS SYSTEMS ONLY - Install the window decals on
both the driver and passenger side windows.
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce véhicule est doté d'un démarreur à distance. Pour réduire les
risques de blessures graves ou mortelles, mettre le démarreur à
distance en mode service et débrancher la batterie du véhicule
avant d'effectuer des travaux d'entretien sur celui-ci.
1 2
WARNING LABEL INSTALLATION
