REF. PART
NO. NO. QTY. DESCRIPTION
BRAKE CLUSTER PARTS LIST
- SB24429M - Left Hand Cluster (shown above)
- SB24428M - Right Hand Cluster
1. SB23871 1 Back Plate Assembly
2. SB9254 2 Cover Plate - Adjusting Hole
3. SB10954 1 Brake Shoe Kit (includes 2 Primary & 2 Secondary)
4. 04305 2 5/16"-18UNC-Gr5 x 1/2" Hex Hd Bolt
5. 05424 2 5/16" External Tooth Washer
6. SB9776 1 Wheel Cylinder Assembly - Right
- SB9777 1 Wheel Cylinder Assembly - Left
7. 05431 1 Bleeder - replacement
8. SB9783 1 Push Rod
9. SB24047 1 Adjusting Screw Assembly - "R" (for LEFT cluster)
- SB24048 1 Adjusting Screw Assembly - "L" (for RIGHT cluster)
10. SB10958 2 Spring - Shoe
11. SB10961-95 1 Shoe Guide
12. SB23937 1 Cable
13. SB23936 1 Cable Guide
14. SB23724 1 Spring - Adjusting Screw
15. 05415-95 1 Lever - Right
- 05414-95 1 Lever - Left
16. SB10959 2 Pin - Shoe Hold Down
17. SB9789 4 Cup Shoe Hold Down
18. 05983 2 Spring - Shoe Hold Down
19. 03380 1 Spring
Please order replacement parts by PART NO. and DESCRIPTION.
Brake shoe kit can be ordered for one complete axle only.
- SB15845 1 Wheel Cylinder Repair Kit
(includes spring, cup and boot)
- SB40929 2 10" Brake Drum

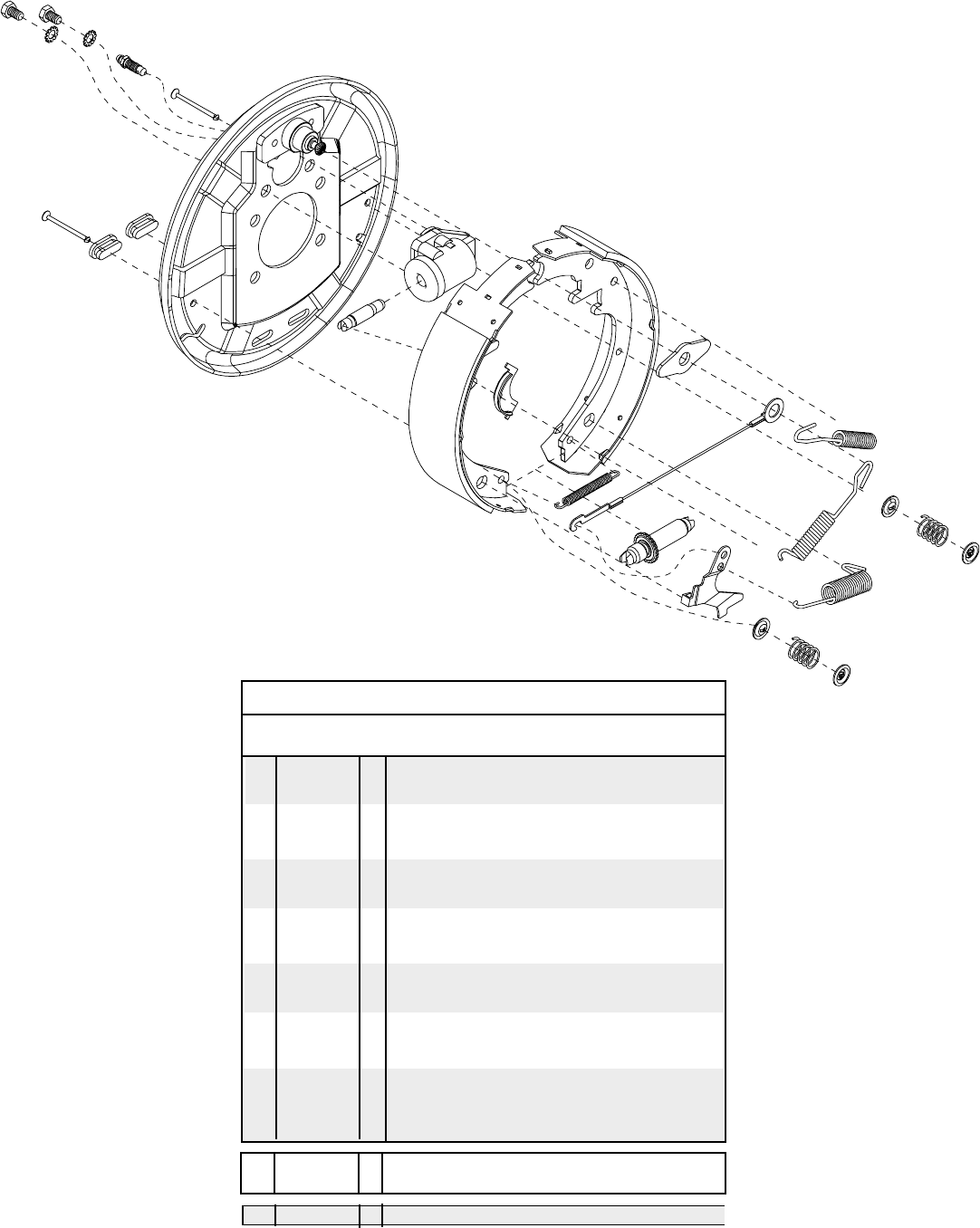

10" SELF-ADJUSTING BRAKE CLUSTER and DRUM PARTS BREAKDOWN
