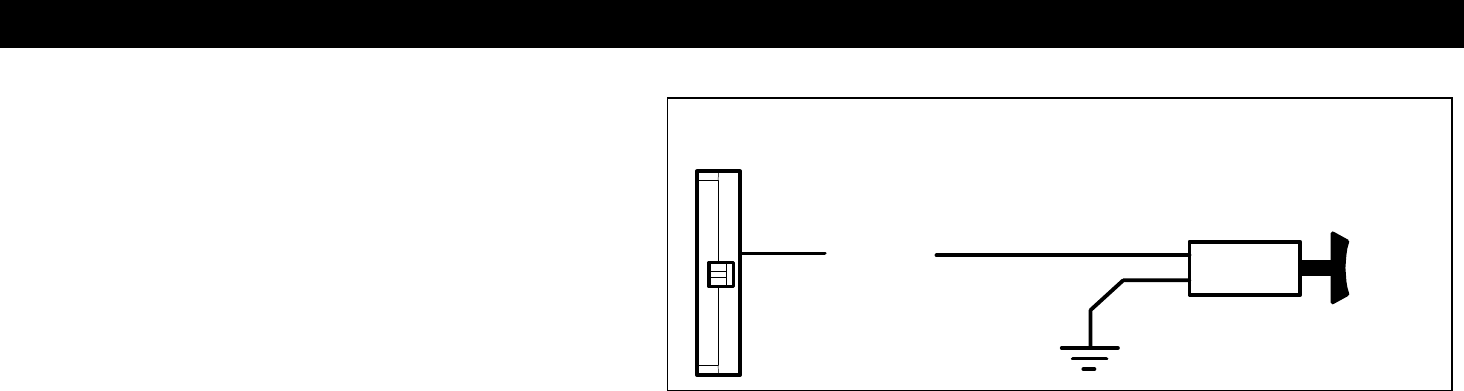

Optional Turbo Timer Wiring
(Not included)
WIRING: 9-PIN Connector (22 gauge wires)
Green: MODE A: (-) Start Activation Input
This wire allows an outside source or accessory to
activate a Remote Start. A 1-second Ground pulse
on this wire will trigger a remote start. This wire
can be used with an RS-400 temperature module.
Green: MODE B (-) Optional Turbo Timer Input
(3 Modes, Option #30) This wire allows the system
to keep a vehicle running for 1-5 minutes
[selectively] after removing the key. This mode
requires the use of a momentary switch that is not included with the kit. Connect a 2-pole momentary switch with
one side to chassis Ground and the other side to the Green input wire. If you own a turbo or turbo diesel vehicle,
you can now allow the system to keep your engine running for 1-5 minutes after exiting/locking your vehicle to cool-
down without the need for an external “Turbo Timer”. See operator’s manual for more information.
Brown: (+) Siren Output
Connect brown wire to siren red wire. Connect black wire of siren to chassis ground (body metal).
Brown/White: (-) 500mA Horn Honk Output (Optional, may require a relay)
Connect to the Negative Horn Trigger wire usually located near the steering column. If the vehicle horn circuit
requires +12V, a relay is required. RELAY WIRING: Connect the Brown/White wire to terminal 85, connect relay
terminals 86 and 87 to +12V constant power. Connect terminal 30 of the relay to the +12V positive device/circuit to
be activated.
Black/White: (-) 500mA Dome Light Illumination Output (Optional, Requires relay)
Negative Dome Light System: Connects to terminal 85 of a relay. Connect terminal 86 to +12V Constant.
Connect terminal 87 to Chassis Ground. Connect Terminal 30 to the Negative dome light activation circuit.
Positive Dome Light System: Connects to terminal 85 of a relay. Connect terminals 86 & 87 to +12V Constant.
Connect terminal 30 to the Positive dome light activation circuit.
