Configuring the
State Analyzer
Now that you have configured the system, you are ready to configure the
state analyzer.
Configure the State Format Specification (Format 1)asshown:
Configure the State Trace Specification (Trace 1)asshown:

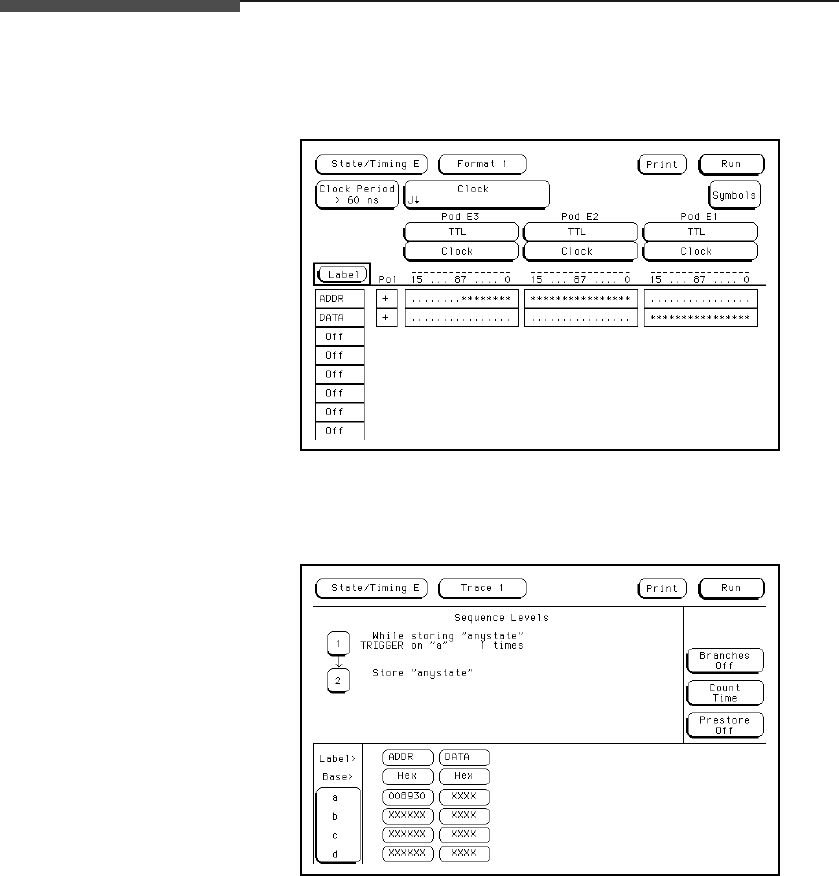

Figure 12-2. State Format Specification Menu
Figure 12-3. State Trace Specification Menu
Using the Timing/State Analyzer HP 16510B
12-4 Front-Panel Reference
