The pop-up will close and machine 2 will supply data for this label
location on screen.
You now must specify what label you want from machine 2. The field to
the left of the machine pop-up allows you to select a label from the labels
assigned to machine 2. Touch this field to view the labels assigned to
machine 2.

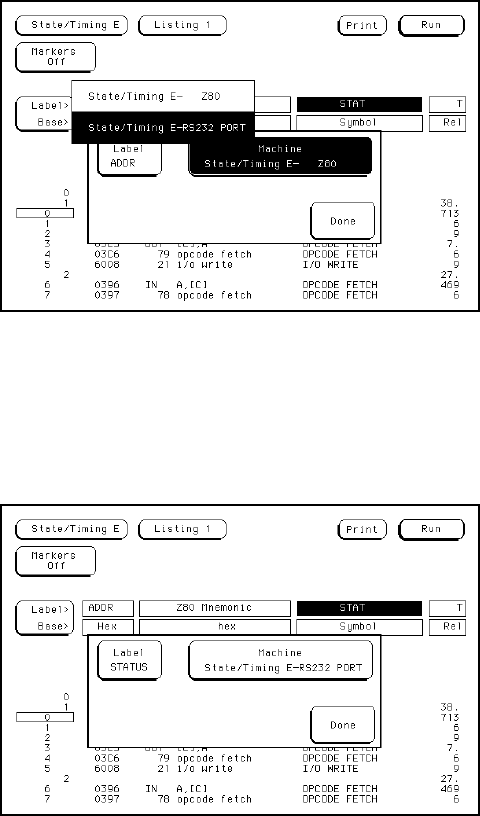

Figure 6-18. Machine Selection Pop-up Menu
Figure 6-19. Machine 2 Label Field
HP 16510B Interpreting the Display
Front-Panel Reference 6 - 19
