Finding the
Answer
YouranswercouldbecalculatedbyaddingtheTrig to X and Trig to O
times, but you don’t have to. The logic analyzer has already calculated this
answeranddisplaysitintheXtoOfieldonthedisplay.
This example indicates the time is 710 ns. Since the data book specifies a
minimum of 250 ns, it appears your DRAM controller circuit is designed
properly.

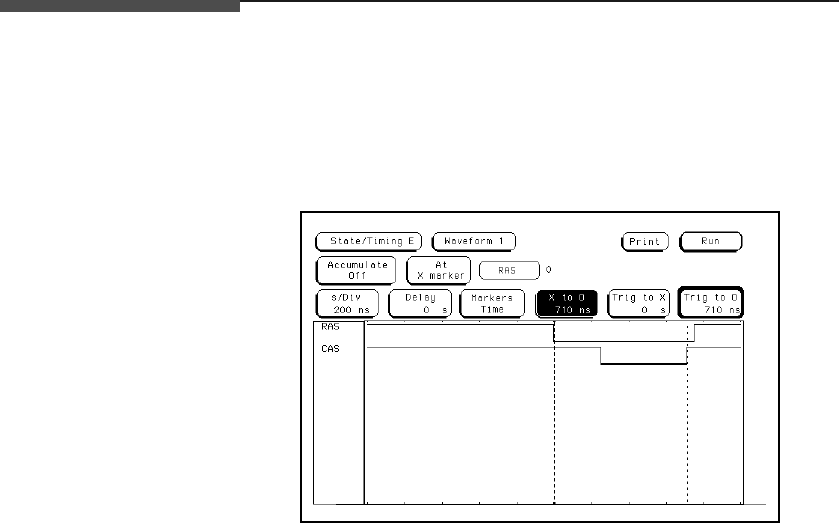

Figure 7-11. Time X to O
HP 16510B Using the Timing Analyzer
Front-Panel Reference 7 - 13
