b. In the pop-up, touch the field to the right of the TRIGGER on
field. This field may either contain a or anystate.
Another pop-up appears showing you a list of "TRIGGER on" options.
Options a through h are qualifiers that allow you to assign a pattern for the
trigger specification.
c. Touch the field with the "a" option.

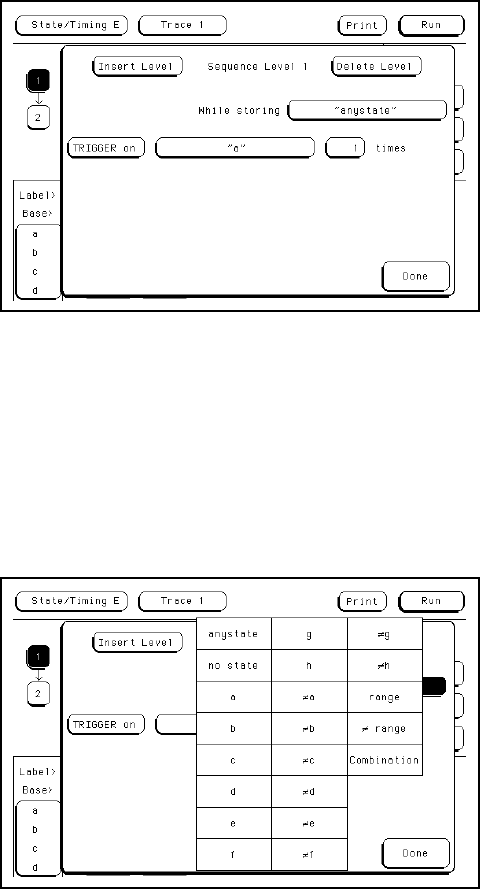

Figure 8-14. Sequence Levels
Figure 8-15. Sequence Level Option Selection
Using the State Analyzer HP 16510B
8 - 14 Front-Panel Reference
