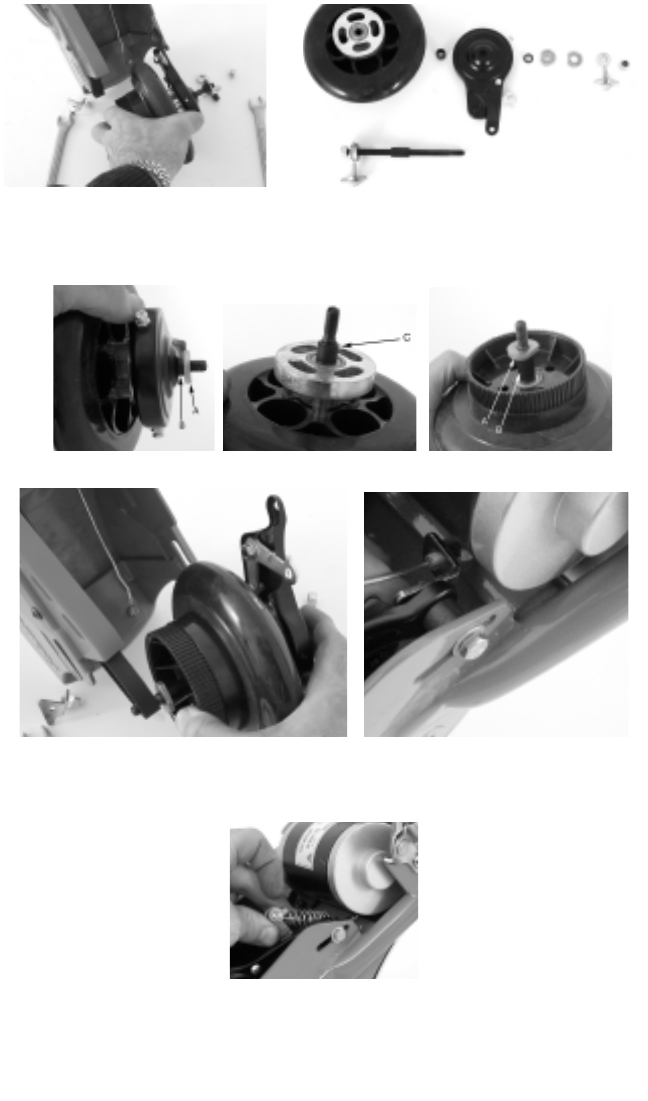

Fig 21 & 22. Pull the old wheel out. Note the arrangement of the hardware sequence. The spacer
order is small, medium, large, with the small spacer between the brake and frame, the medium
between the brake and wheel,and the long between the wheel and frame (refer to following
sequence).
Figures 23, 24 and 25.
Figures 26 and 27. Install new wheel by maneuvering the belt onto the wheel pulley and slipping
the axle into the slots on the frame. To hook up the brake housing anchor, align the cable guide
adjuster and install the spacer and bolt. To not tighten until final step.
Figure 28. Install the brake spring and thread the cable wire into the cable anchor. Thread the
cable to its original position and tighten securely.
