CONNECTIONS

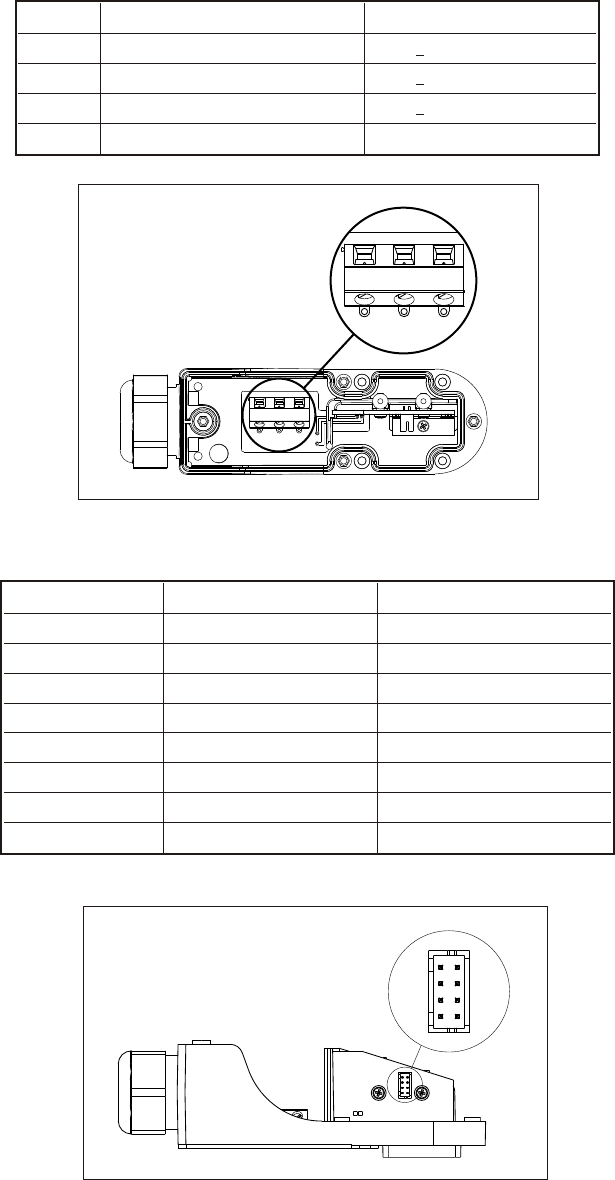

Connections within the forcer termination box are as follows:
TB1 FUNCTION CONDUCTOR DESIGNATION
1 Motor phase U Black 1
2 Motor phase V Black 2
3 Motor phase W Black 3
Chassis Protective earth + both cable screens Green/Yellow
FUNCTION CONDUCTOR DESIGNATION
1 +SIN Blue
2 -SIN Black paired with Blue
3 +COS White
4 -COS Black paired with White
5 +5Vd.c. Red
6 0V Black paired with Red
7 +TH (Thermistor) Green
8 -TH (Thermistor) Black paired with Green
Page 23
ServoTube 38 Installation Guide Appendices
1
7 8
22
PL1
Figure C.5 - Sensor cable connection at PL1 on the
Sensor PCB
TB1
1 2 3
Figure C.4 - Power cable connection at TB1
