ServoTube 38 Installation Guide ` Chapter 2
Installation
XTA3804
XTA3806
XTA3808
XTA3810
ALL DIMENSIONS IN MM
THRUST ROD
Note: 1. Actuator is double acting
Tolerance +/-2mm
33.0
70.0
42.0
40.3
38.2
84.0
38.0
43.0
43.0
4 MTG HOLES
M6 X 10 DEEP
141
12.0
29.0 PITCH TYP
60.0
258.0
40.0
27.0
187.0
83.0
46.0
8 MTG HOLES
M4 X 8 DEEP
5.5 59.0
= 58.0 =
= 37.0 =
= 60.0 =
4 MTG HOLES
M4 X 8 DEEP
8.2
14.0
11.8
6.8
141
29.0 PITCH TYP
60.012.0
329.0
40.0
27.0
89.0
252.0
46.0
8 MTG HOLES
M4 X 8 DEEP
ACTUATOR ENVELOPE
= (2 X STROKE ) + 390
(See Note 1)
ACTUATOR ENVELOPE
= (2 X STROKE ) + 319
(See Note 1)
ACTUATOR ENVELOPE
= (2 X STROKE ) + 461
(See Note 1)
141
29.0 PITCH TYP
60.012.0
471.0
27.0
40.0
93.0
390.0
46.0
8 MTG HOLES
M4 X 8 DEEP
ACTUATOR ENVELOPE
= (2 X STROKE ) + 532
(See Note 1)
38.0
28.0 AF
38.0
OVERALL LENGTH +/-1mm
23.0
M10 X
20.0
MTG BOSS
ACTIVE LENGTH +/-1mm
400.0
27.0
40.0 141
93.0
319.0
60.012.0
29.0 PITCH TYP
46.0
8 MTG HOLES
M4 X 8 DEEP
MTG HOLE
M10 X 12 DEEP
A(2:1)
T - SLOT DETAIL

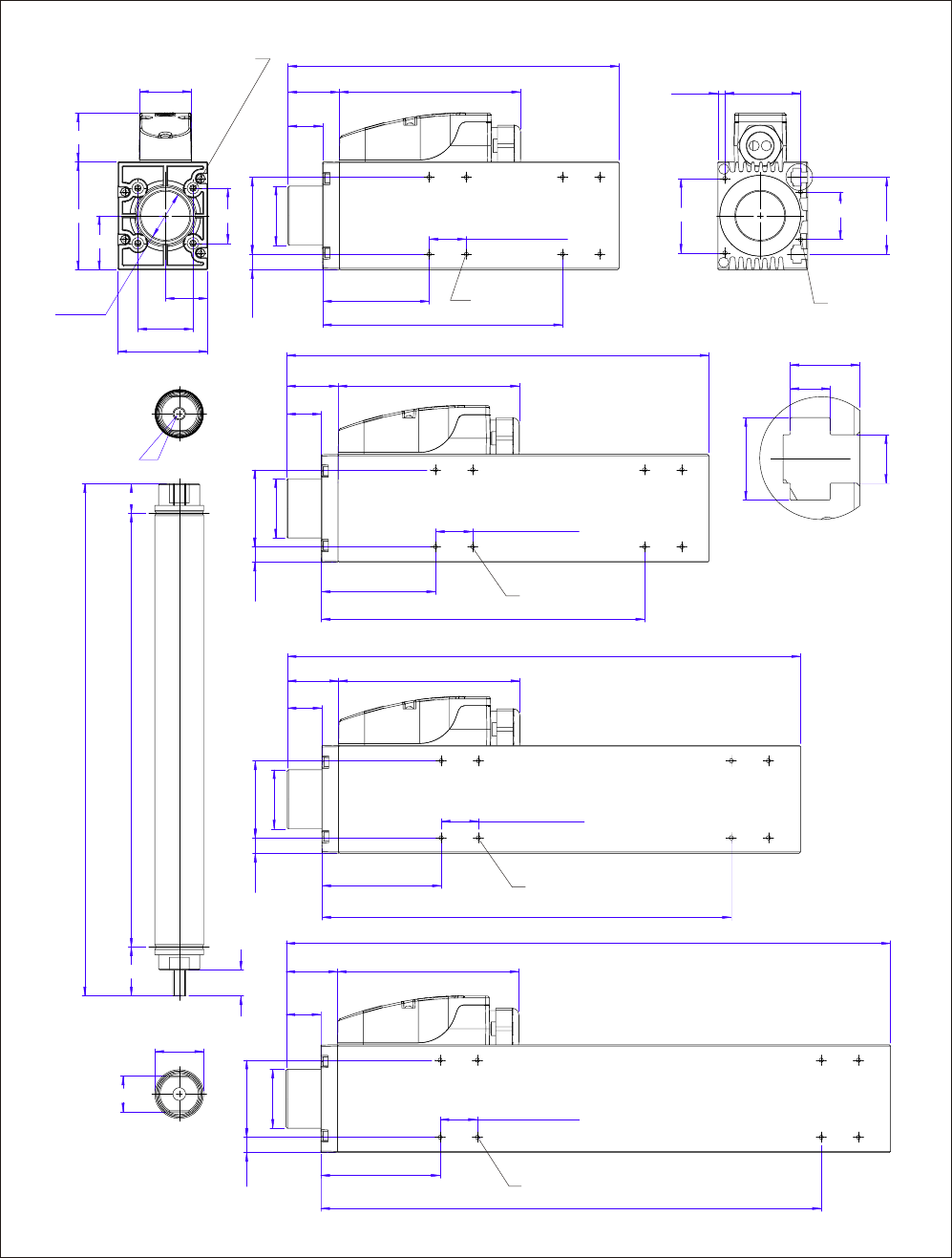

Figure 2.1 - XTA Outline drawings and mounting details
