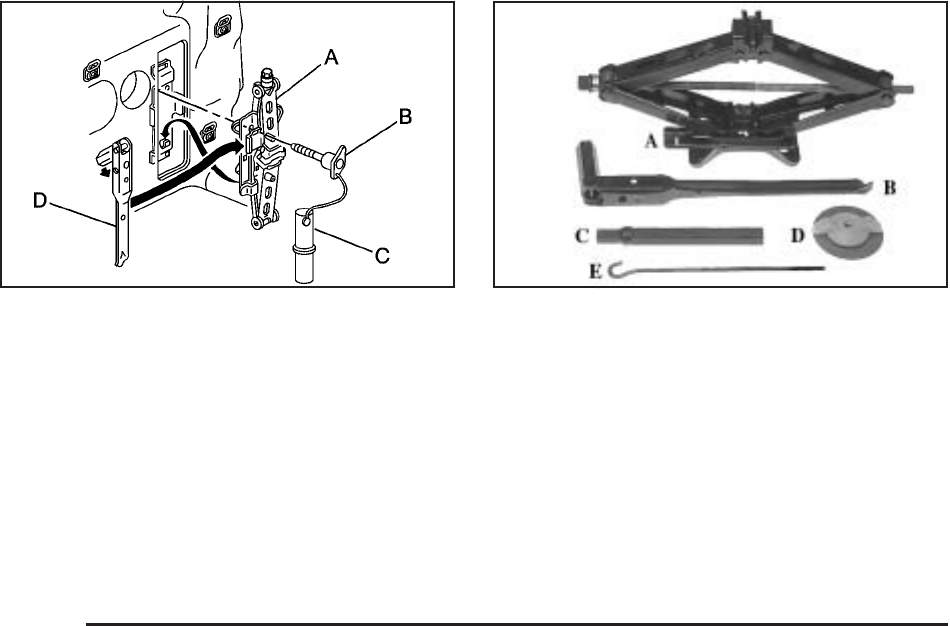

A. Jack
B. Wing Bolt
C. Jacking
Instructions
D. Folding
Wrench
3. Remove the jack and jacking tools by turning the
wing bolt counterclockwise. Slightly lift up the jack
from the bracket tab and then take it out of the
storage compartment.
4. Separate the jack and remove the folding wrench
from the jack.
The tools you’ll be using include the jack (A), folding
wrench (B), extension tube (C), wing nut (D), and
J-Hook (E).
Removing the Spare Tire (Vehicles without
the Sliding Rear Convenience Tray)
The compact spare tire is located under the vehicle,
behind the rear bumper. Use the spare tire hoist to raise,
lower and store the compact spare. See Compact
Spare Tire on page 5-102 for more information about
the compact spare.
5-80
