1. OPERATION
14
1.28 Turning Navigation Data
On/Off
Navigation data appears on the bottom half of
the screen as in the illustration below. You
may turn the navigation data display on or off
as shown below.
Note: When the nav data is turned on with
shift or zoom active, zoom or shift is
cancelled.
1. Press the [MODE] key.
2. Press ► to choose ON; ◄ to choose
OFF.
3. Press the [MENU/ESC] key to close the
menu.
6.0
nm
2.0
RNG 2.22nm
BRG 45.62°
TTG 02H21M
+
Position
Nav
Data
34°44.135 N
135°44.135 E
Speed Course
10.2 kt 135°
Position
EBL
- - -
.-
°
VRM - - - -nm

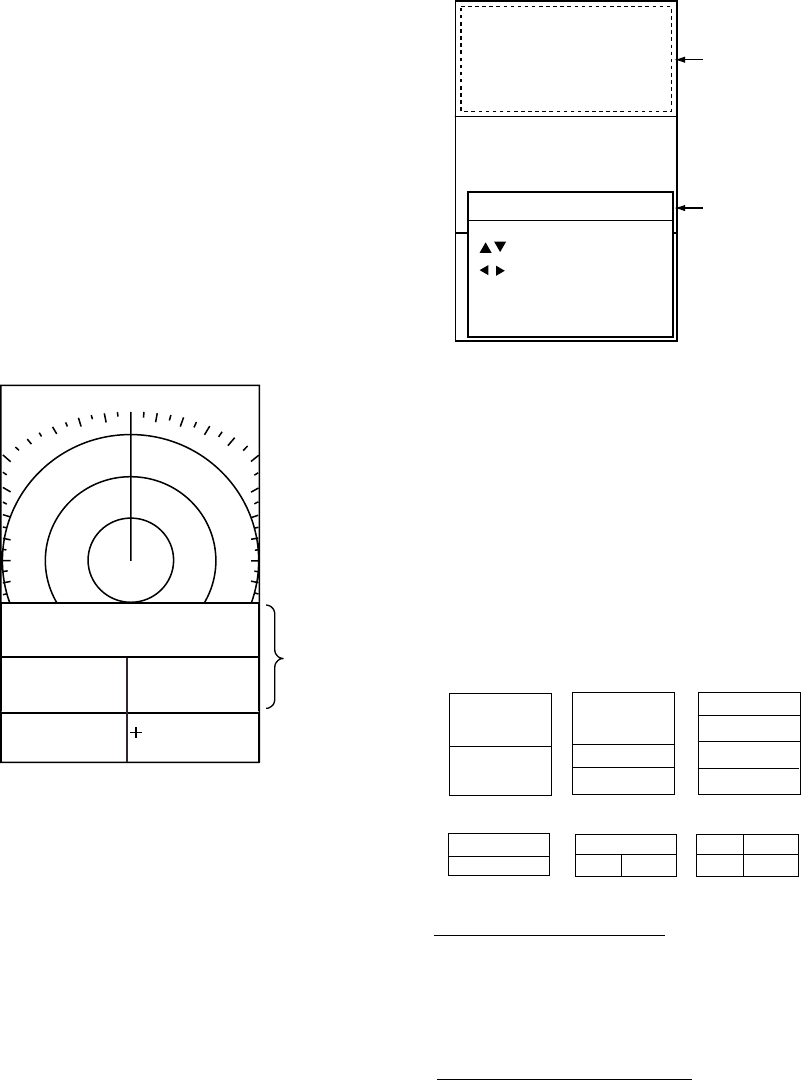

Sample navigation display
1.29 Setting up Nav Data
Displays
The user may arrange the nav data display
as desired. You may display between two and
four items and choose the item and the order
to display them. For how to choose the
number of items to display, see “NAV DATA”
on page 16.
1. Turn on the nav data referring to
paragraph 1.28.
2. Press the [POWER/BRILL] key
momentarily followed by the [MODE] key
to go into standby.
3. Press the [MENU/ESC] key to close the
window.
4. Press the cursor pad to display the nav
data setup window.
Position
30° 00.065'N
130° 00.574'E
DATE
09 10 02
DATE
09 10 02
TIME
14:25:03
0.25nm
XTE
1 0.5 0 0.5 1
Dashed rectangle
circumscribes
selection
NAV DATA SETUP
/ : Window Selection
/ : Data Selection
[MENU/ESC] : Enter
Nav data
setup window
Nav data display with nav data setup window
4. Press ▲ or ▼ to choose the data window
to process. The dashed rectangle marks
current selection.
5. Press ◄ or ► to choose item to display.
See the illustration below for the data
availability. A description of the nav data
displays appears on the next page.
Items displayable in (1) - (3): depth, position,
course, date, time, range and bearing, trip distance,
odometer distance, water temperature,
heading, time-to-go to destination waypoint,
XTE*, speed*, wind speed and direction*,
destination waypoint data*, compass*
(9)
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(1)
(2)
(3)
(4) (5)
(6)
(7)
(8)
(9)
Nav data at stand-by
Nav data on radar display
Items displayable in (4) - (9): depth, position,
course, range and bearing, trip distance,
odometer distance, water temperature,
date, time, speed, heading, air pressure, time-to-go
to destination waypoint, XTE, wind speed and direction
* = Graphic display in standby
2-item
display
3-item
display
4-item
display
Nav data window and item displayable
5. Press the [MENU/ESC] key to close the
nav data setup window.
