1. OPERATIONAL OVERVIEW
1-4
1.4 Choosing a Display
This current indicator has six main displays: tide vector display, ship’s speed display, course
plot display, text display, echo level display and graph display. You may choose a display by
pressing the [DISP MODE] key.
1.4.1 Tide vector display
The tide vector display mainly shows tide speed and direction for three layers with a vector.
Tracking Mode
Tide Speed Range
Echo Level
Heading*
Water
Temperature*
Water Temperature
Graph*
*: Sensor required.
Tide of Layer 1 (Yellow)
Tide of Layer 2 (Purple)
Tide of Layer 3 (Light-blue)
Own Ship Vector (Green)
Tide Differential
Tide Speed
and Direction
(3 layers)
Speed, Course*
Mode Marker
Echo Display
Range
Depth Setting
Tide Average Setting
Heading Line

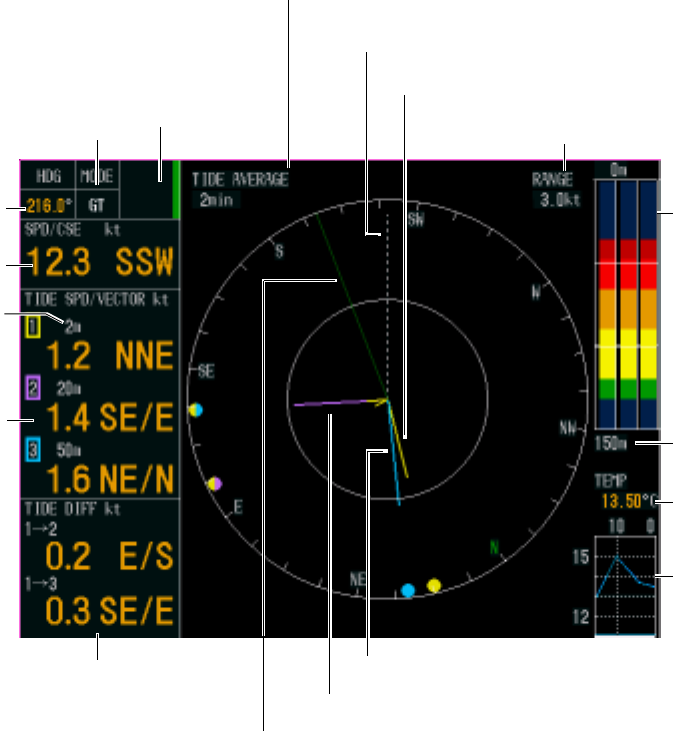

Tide vector display
