Ford C3493 Motorized Toy Car User Manual



14
ASSEMBLY
F
C3493pr-0921
18

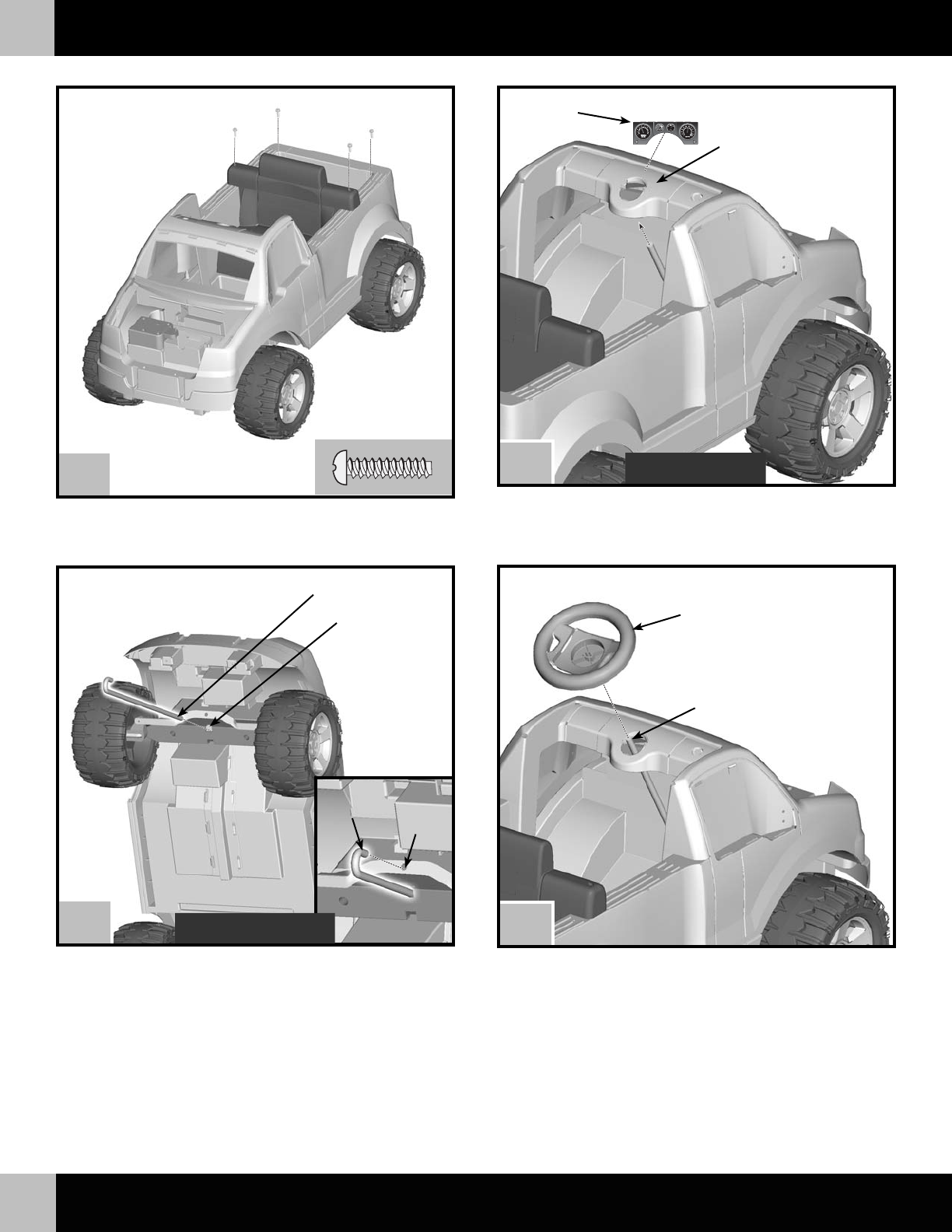

• Lift the front end of the vehicle.
• Insert the straight end of the steering column through the hole in the
vehicle and out through the hole in the dashboard.
• Hook the curved end of the steering column into the hole in the
steering linkage.
Straight End of Steering Column
Hole
Curved
Curved
End
End
Steering
Steering
Linkage
Linkage
Hole
Hole
• Insert four #8 x
3
/
4
" screws into the seat.
• Tighten the screws.
19
BOTTOM VIEW
Steering Wheel
Steering
Wheel Column
• Fit the steering wheel onto the end of the steering column and into
the hole in the dashboard.
• Lower the front end of the vehicle.
• Apply label #8 to the dashboard, as shown.
EF
Dashboard
Label #8
21
20
BACK VIEW
Curved
End
Steering
Linkage
Hole
