EL-O-MATIC ACTUATOR WITH ONE WAY LIMIT STOPS L1/LF
Description
Actuators with one way adjustable limit stops are used where the maximum opening (or closing)
position of the valve needs to be reduced. For instance to adjust the maximum capacity of a
remote operated valve.
Also actuators with 180° rotation are available with these stops.
Operation
Stop screws are fitted to both endcaps and the screw length is such that adjustment is possible
through the specified rotation of the actuator.
The modified endcap is machined for -0.5° to +93° rotation for all P-series models.
Identification
“L1” is added to the basic part number i.e. PD2500-L1
Specification:
Pressure : Up to 120 PSI
Media : Air, dry or lubricated or non-corrosive gas
Torque (90°) : Data sheet A1.104.01 - A1.104.04
(180°) : Data sheet P-serie A1.204.01 and A1.204.02
Other dimensions : Data sheet A 1.103.XXX (90°)
: Data sheet A 1.203.011 (180°)
Temperature : -4.0° to +176°F
Adjustable range : 80°-93°(90°) or 160°-186° (180°)
Adjustable position (see data sheet A1.503 or A1.504)
code position
A Valve open (spring to close)
B Valve open (spring to close)
C Valve closed (spring to open)
D Valve closed (spring to open)
Note:
1) Can be provided with extra long screws for full range adjustment
(identification: PD2500-LF)
2) This option in combination of a manual override gearbox is redundant

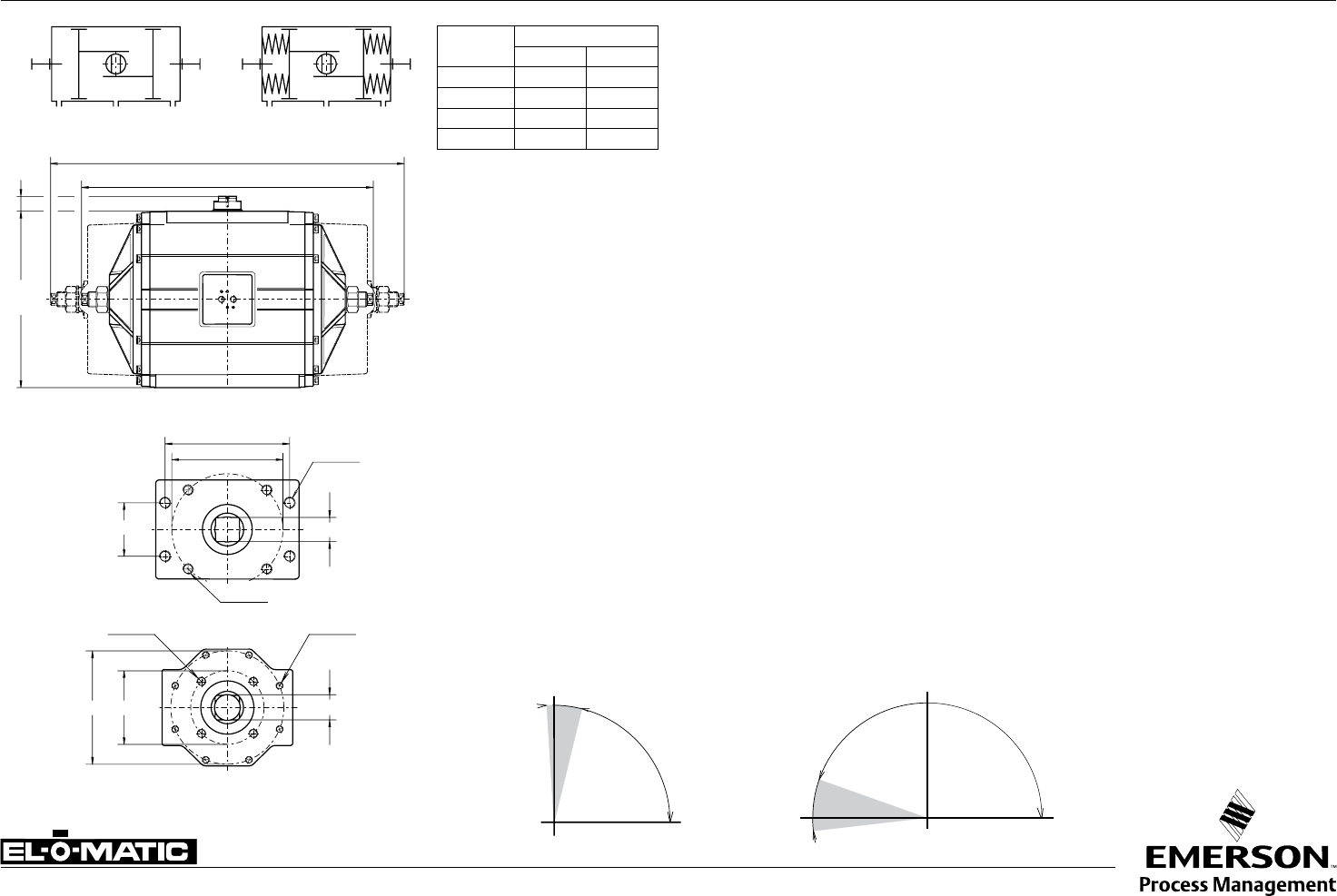

Dim.
in inch
ACTUATOR TYPE
P2500 P4000
A
22.8 27.9
B
31.3 45.4
C
14.0 15
D
1.2 1.2
B
A
C
D
3° 10°
Open
Adjustable range
90° actuator
Adjustable range
180° actuator
-20°
+6°
Open
Closed
Closed
Note: Do not adjust under pressure
B
A
C
D
DOUBLE ACTING
SPRING RETURN
9.236
6.496
3.827
5/8"-11x.98
P2500
3/4"-10x1.14
1.811
5/8"-11x.98
P4000
2.16510.000
6.496
3/4"-
10x1.14
