10 DOC,F20,EDN Rev.: -
2.2 Pneumatic Connections
Assuming a standard (direct acting) installation with an
increasing signal to open the valve in a CCW (counter clock-
wise) direction.
Before connecting any air supply make sure that the air
available is clean dry instrument air filtered to at least 25
microns.
2.2.1 Double acting
1. Connect an appropriate piece of air tubing between the port
1. on the positioner to the “A” port on the actuator. (The “A”
port is the one that when air is applied to it, rotates the
actuator in a counter clockwise direction).
2. Connect an appropriate piece of air tubing between the port
2. on the positioner to the “B” port on the actuator. (The “B”
port is the one that when air is applied to it, rotates the
actuator in a clockwise direction).
3. If the positioner is required to meet enclosure rating IP54, be
sure that the sintered filter is in place at the “Exhaust” port.
4. Connect an air supply to the positioner port marked
“Supply”.
Note:
The same procedure is applicable to connect a double
acting actuator with reverse action. Only select "Reverse
Action", see page 20.
For electrical installation, see page 16.
2.2.2 Single acting
1. Connect an appropriate piece of air tubing between the port
1. on the positioner to the “A” port on the actuator. (The “A”
port is the one that, when air is applied to it, rotates the
actuator in a counter clockwise direction).
2. Connect an air supply to the positioner port marked
“Supply”.
3. If the positioner is required to meet enclosure rating IP54, be
sure that the sintered filter is in place at the “Exhaust” port.
Note:
The same procedure is applicable to connect a single
acting actuator with reverse action, only select "Reverse
Action", see page 22.
For electrical installation, see page 16.

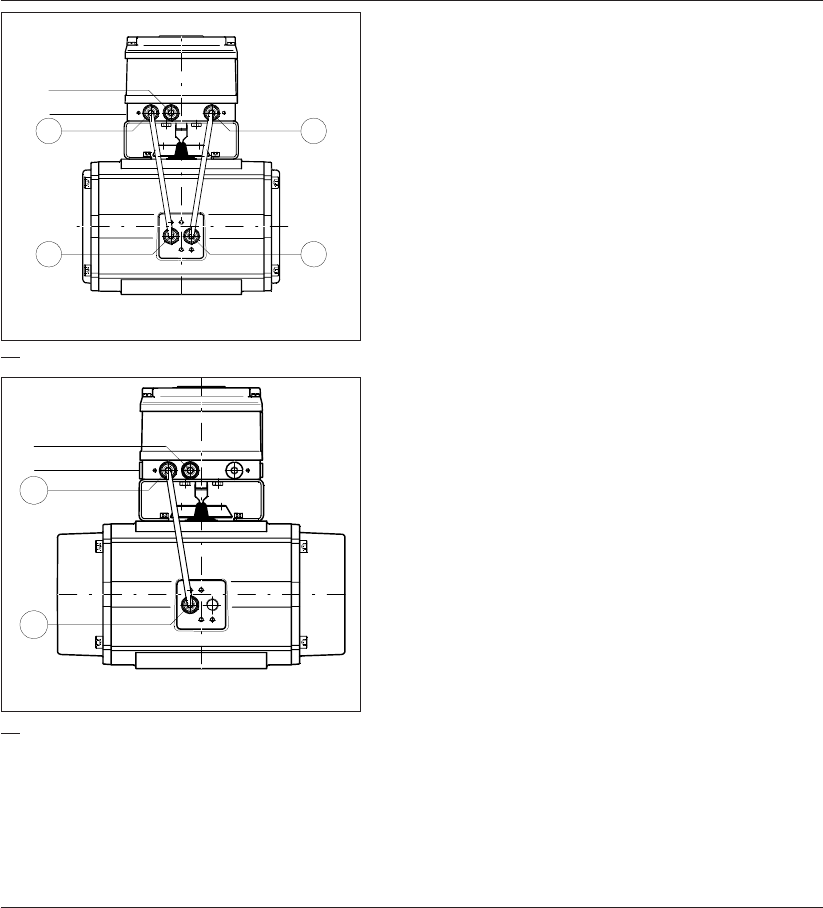

2.0 Installation - Rotary Actuators / Einbau Drehantriebe / Montage op roterende
aandrijvingen
Double acting
Supply
Exhaust
Supply
Exhaust
12
AB
Double acting
2.1
2.2
Supply
Exhaust
1
A
= Doppelt Wirkend
= Luftversorgung
= Entlüftung
= Dubbel werkend
= Luchtaansluiting
= Ontluchting
Single acting
