1051 & 1052 H & J
Instruction Manual
Form 5587
November 2006
28

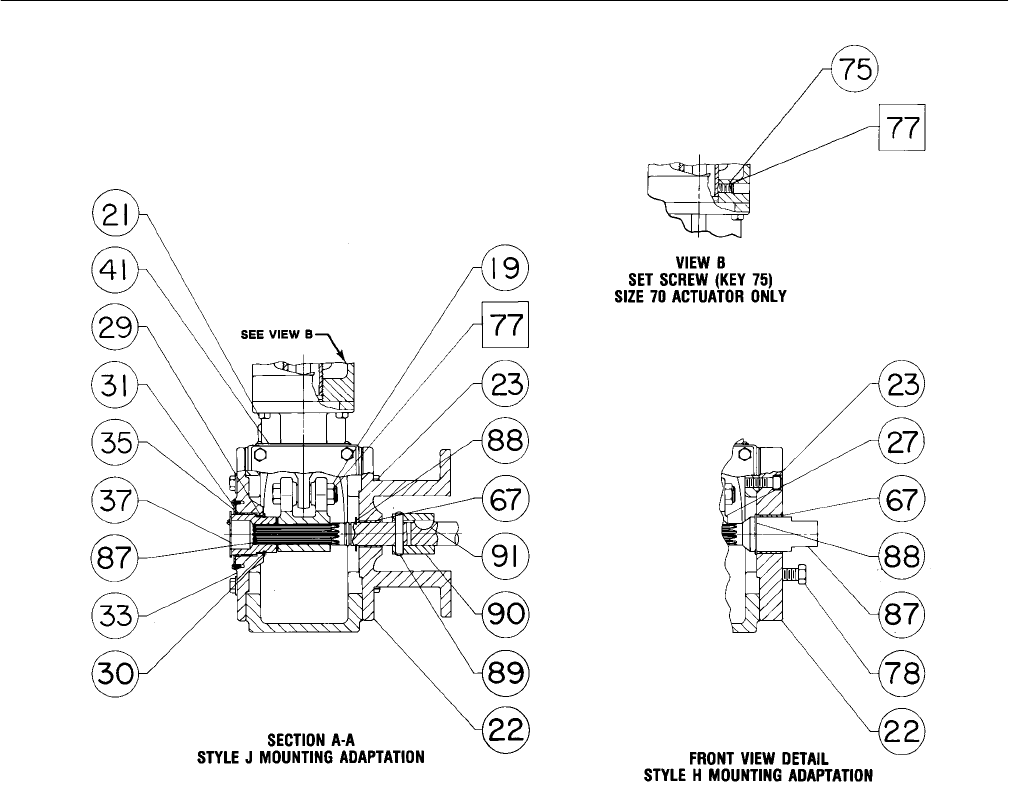

Figure 13. Type 1052 Actuator with Typical H and J Mounting Adaptations (continued)
59A2420-A/DOC
55A6970-J/DOC
59A2416-A/DOC
Key Description Part Number
27 Lever
28 Screw cap, Hex Hd
29 Hub
30 Retaining Ring, Ext
31* Bushing (2 req’d)
Size 40 12A9373X012
Sizes 60 & 70 12A9374X012
33 Cover
34 Screw, Cap, Hex Hd
Key Description Part Number
34 Stud post, Steel (not shown)(w/Type 3555T)(4 req’d)
35 Scale, Indicator (w/out handwheel or w/Type 3555T)
36 Screw, Self Tap (2 req’d)
37 Travel Indicator
38 Self-Tapping Screw (2 req’d)
38 Machine Screw (2 req’d)
*Recommended spare parts
