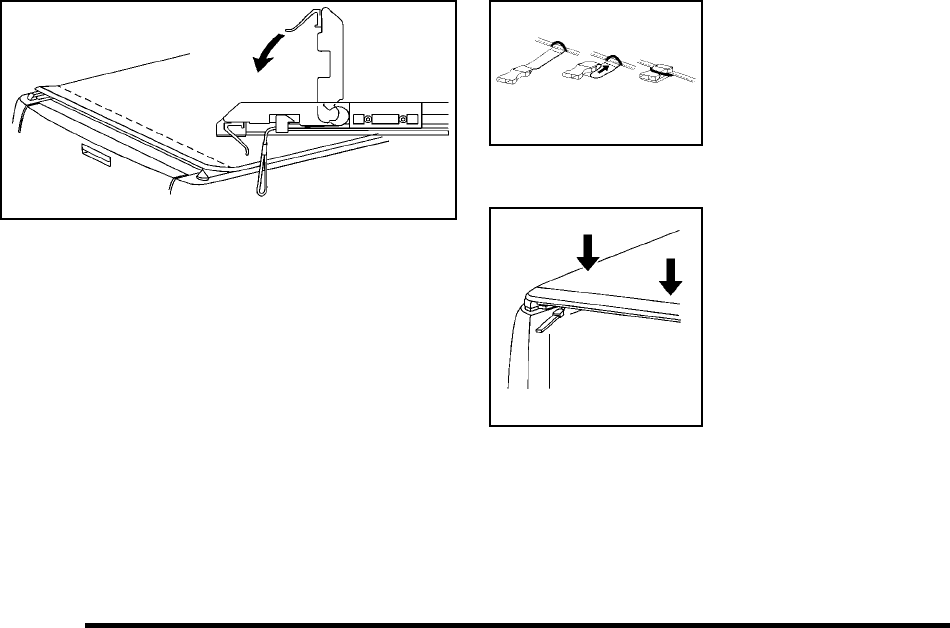

5. When the cover is rolled out, place the rear rail
into the rear pivot mounts. Firmly press down
on each side of the cover, until the latches are
secured into the side rails. If latch is too tight,
loosen the tension adjustment screws. If the latch
is not securely holding the rear rail, tighten the
tension adjustment screws. Only the driver's side
has a latch.
6. Secure the driver side Velcro
®
of the cover to the
side rail. Then pull the cover tight across the bed
and fasten the Velcro
®
on the passenger side.
7. Secure the buckles by
folding them once, then
slide them under the
cord located on the
cover.
Secure in Open Position
1. To open the cover,
open tailgate and push
down on the cover. The
pull back on pull strap.
2. From the drivers side, roll the cover up tightly.
3. When the cover is rolled up, buckle both tie-down
straps. Pull both straps tight.
3-12
