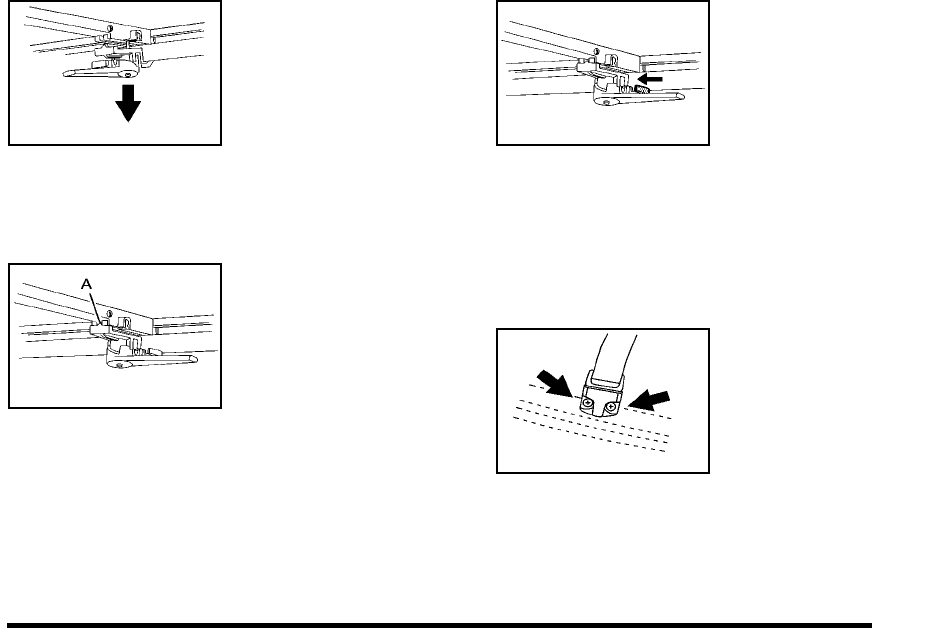

4. Tilt the clamp assembly so that the locator is in
the slot, pull down on the assembly, and slide
the clamp under the edge of the inner lip of the
bed rail.
5. Pull the handle toward the rear of the truck to
engage the clamp. Make sure the locator is secure
into the slot (A). If unable to completely engage
clamp, see the tightening and loosening
procedures later in this section.
6. The clamp should be securely engaged. Shake the
handle assembly to make sure the handle does
not move.
7. There are locking features on the front clamps
only. With the handle in the clamped position, push
the locking tab to engage the lock.
8. Repeat the clamp attachment steps 3 through 7 for
the opposite side.
Closing the Cover
1. Release both the retention straps located on the
top of the cover behind the cab and press into the
stored position.
2. Unfold the tonneau cover to the closed position.
3-3
