154 MFP disassembly/assembly ENWW
Installing the coupling
CAUTION Be sure the power cord has
been unplugged from the
wall outlet.
Procedure
1 Clean the outer surface of the drum
coupling and drum shaft coupling with
drum cleaner and a cleaning pad.

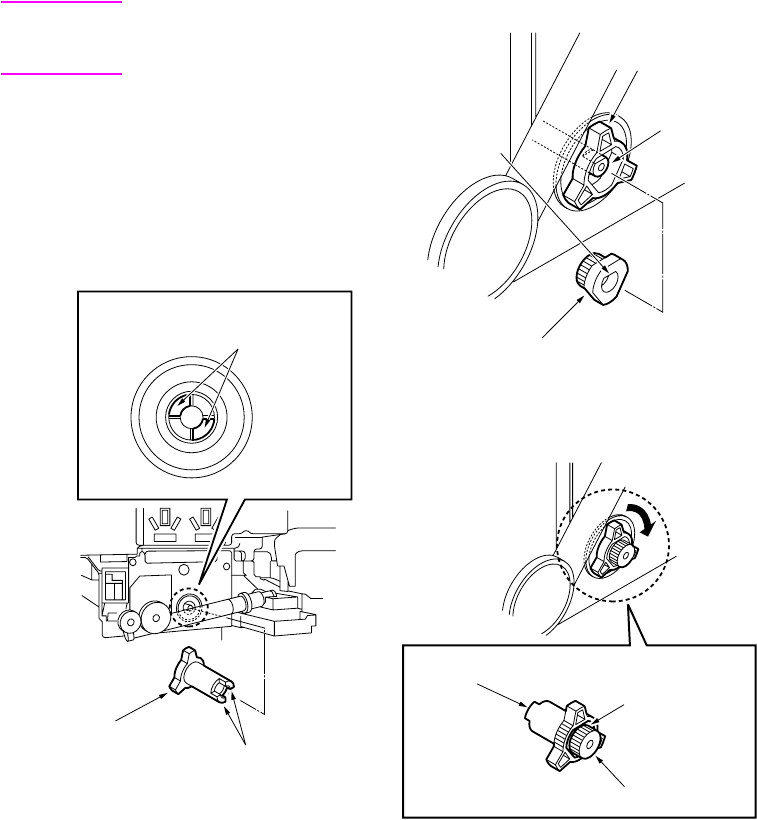

2 Insert the drum coupling aligning the
protrusions on the drum coupling with the
notches in the drum.
3 Insert the drum shaft coupling so that the
D cut section of the drum shaft coupling
matches the drum shaft.
4 Turn the head of the drum coupling
clockwise so that the flange section on the
drum shaft coupling is flush.
5 Tighten with a screw.
Drum notches
Drum coupling
Protrusions
Drum coupling
D cut section
Drum shaft
Drum shaft coupling
Drum coupling
Flange section
Drum shaft coupling
