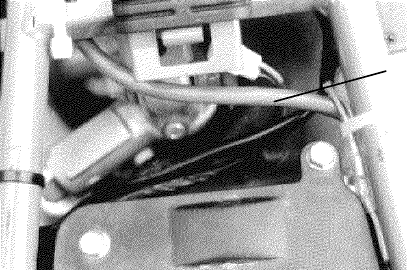

wire back along the stock wiring harness, under the triple clamps, underneath the frame
backbone, and cross over to the right hand side of the airbox at the area above the shock (Photo
13 & 14). Run the wires back to the rear of the airbox.
Airbox
Shock
Photo 14
Multi-Conductor
Cable (Cross-over)
17. Front Wiring Connections: You will now make all the connections required at the front of
the bike.
A. Ignition Switch: The only place the Baja Designs kit interfaces with the KLX’s
ignition system is through the kill button lead. In no other way does this lighting kit
effect the operation of the motorcycle’s ignition system. The turn signal switch has a
built in ignition function that will allow you to shut the bike off via a built in kill switch
or selecting the rear most position with the lighting selector. This will prevent you from
forgetting to shut off the lights when you turn off the bike, lessening the chance for a
dead battery. Note this switch must now be pushed to the second position for the bike
to run (See later description).
