Northstar 2 kW Radar Installation Manual 9
2.2 Check the 2 kW radar parts
The RDR1021MD 2 kW radar system consists of a scanner, a radar processor, and associated cables.
There are two basic options for the 2 kW radar:
NS004790R is the standard 2 kW radar system, consisting of a box containing the scanner
and the 49 ft (15 m) interconnection cable (NS003100). This is pre-installed into the scanner.
NS004790M is the alternative 2 kW radar system, consisting of a box containing only the
scanner. This radar system is designed for use with the (65.5 ft) 20 m interconnection cable
(NS003101) which is ordered and supplied separately.
If you want to use an interconnection cable length other than the 49 ft (15 m) or 65.5 ft (20 m) options,
please consult your Northstar dealer.
If you're connecting the 2 kW radar to a Northstar 6000i or 6100i system, a 10 ft (3 m) radar
communications cable (NS003107) is supplied with the 6000i or 6100i system. If this is not long
enough, an optional 6 ft (1.8 m) extension cable (NS003108) can be added. between the radar
processor and the 6000i. This extension cable is not supplied as standard, and must be ordered
separately.
If you're connecting the radar to a Northstar 8000i system, you need the 8000i network cable
(NS00481X) which is available is several lengths. This is not supplied as standard, and must be ordered
separately.
Unpack the boxes carefully and check the contents against the packing lists. If anything is missing,
contact your distributor.

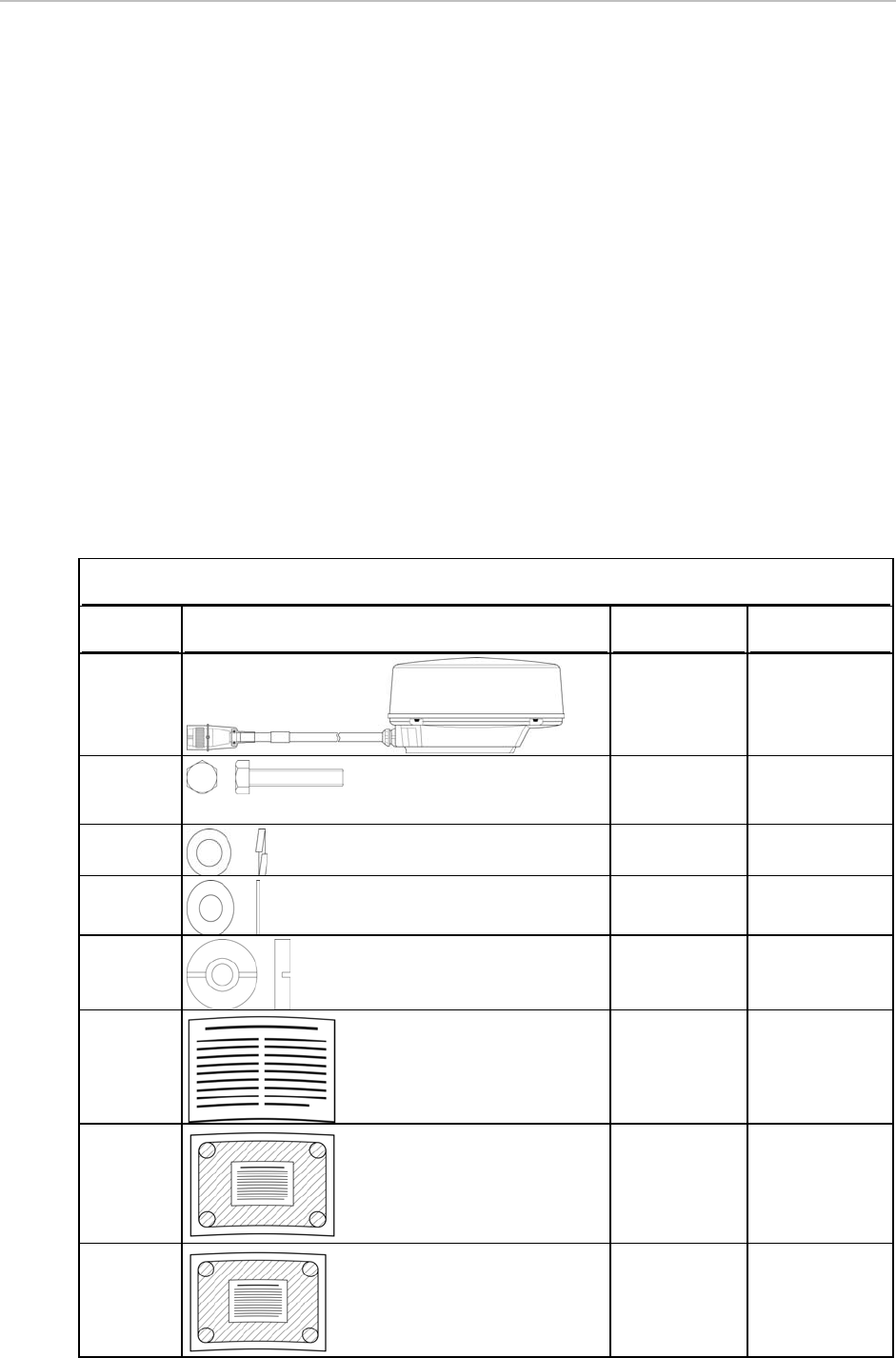

NS004790R 2 kW scanner standard components
Quantity Item Part name Part no.
1
Scanner unit NS004790 with
interconnection
cable NS003100
49 ft (15 m) pre-
installed
4
Hexagonal bolt
5/16-18
UNCx31.75 mm
Part of Hardware
kit HR000066
4
M8 Spring
washer
Part of Hardware
kit HR000066
4
M8 Plain washer Part of Hardware
kit HR000066
4
Rubber washer Part of Hardware
kit HR000066
1
Packing list LA000450A
1
Installation sheet
MTZ303386
LA000410A
1
Mounting
template
LA000451A
