30 Northstar 2 kW Radar Installation Manual

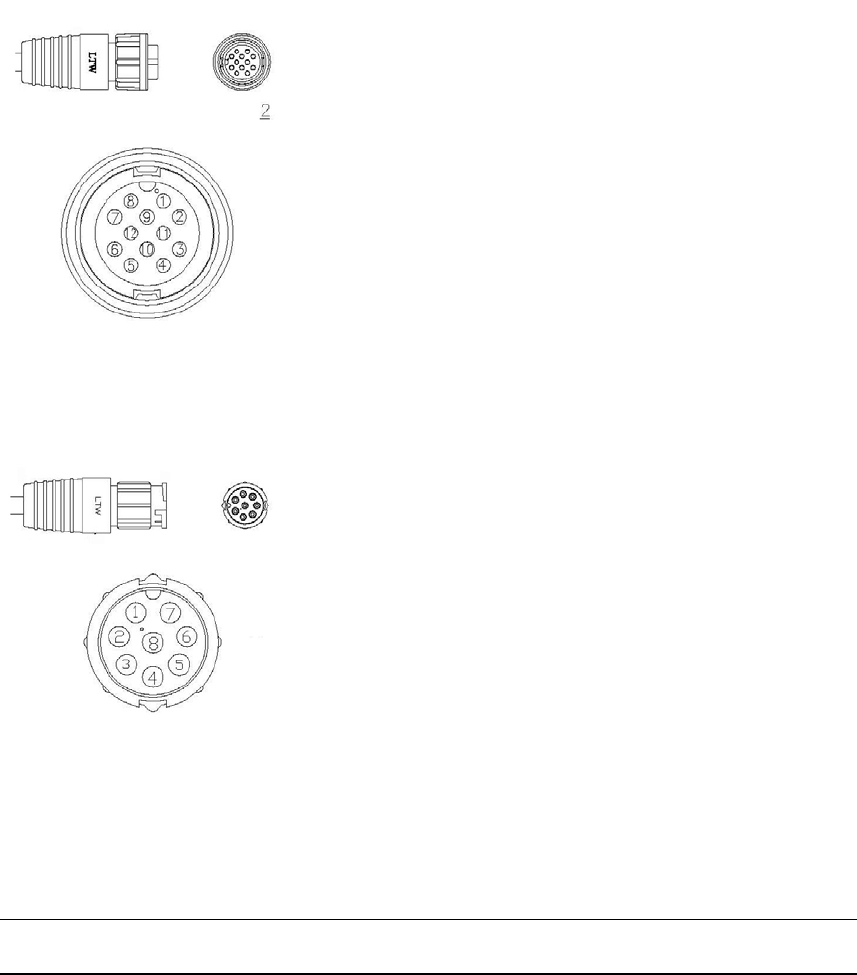

Connector 2 - Radar NMEA/Communications pin assignments
Connector 3 - SmartCraft pin assignments
4.5.2 Configure the remote power control for a 6000i or 6100i (common power
source)
IMPORTANT: This remote power control option works correctly only when the 6000i or 6100i and the
radar processor share the same power earth and are located 16.5 ft (5 m) or less apart.
A simplified diagram of the power control circuit for the radar processor and 6000i or 6100i is shown:
