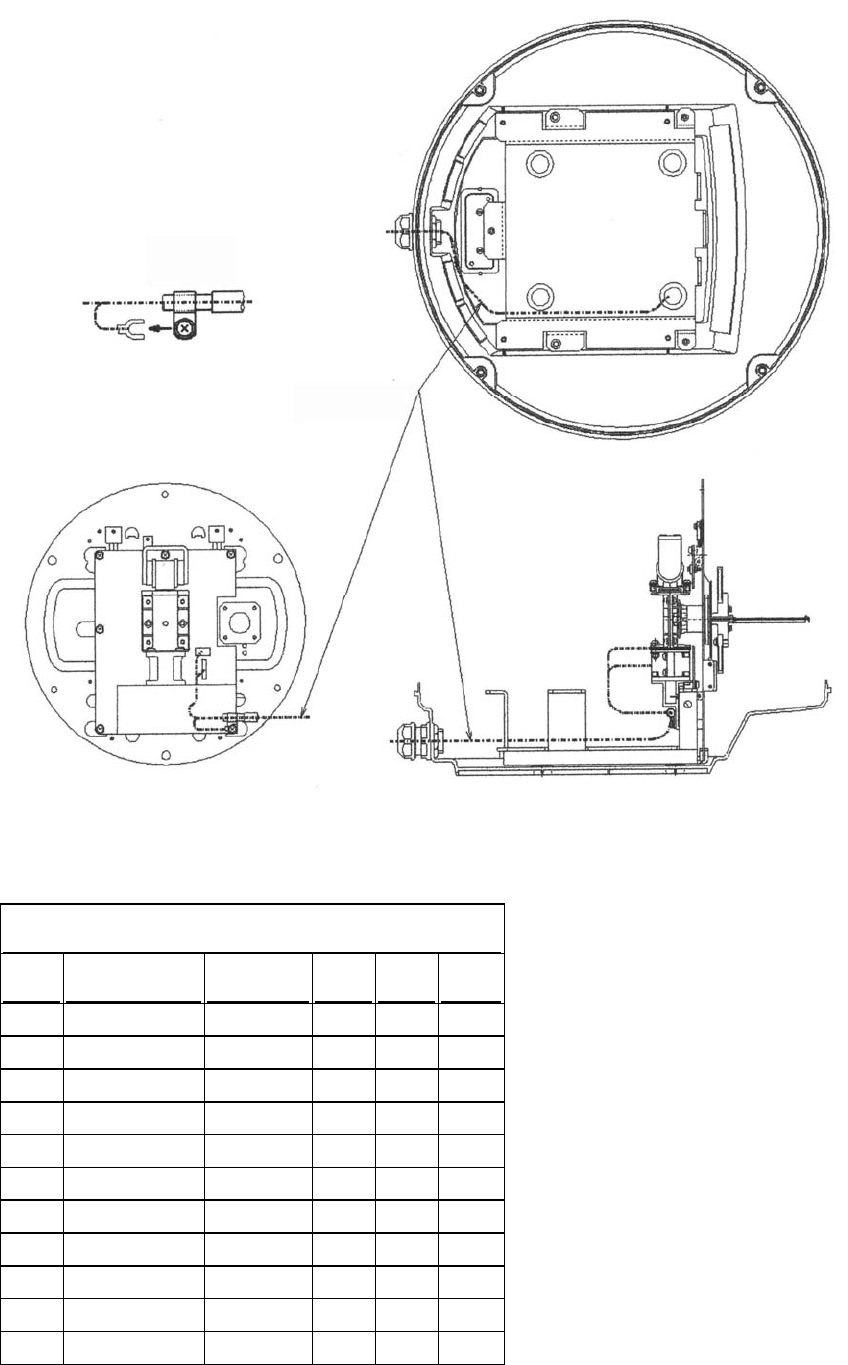

24 Northstar 2 kW Radar Installation Manual
The wiring details for the connector ends (B, C, and D) are as follows:
2 kW interconnection cable (NS003101) connector ends
Pin Color AWG size B C D
1 Green (big) #12
1
2 Yellow (big) #12
2
3 Green (thin) #24 7
4 Clear Coax signal #24 4
5 Drain wire for 4 #24 5
6 Drain wire for 7 #24 3
7 Black Coax signal #24 2
8 White #24 6
9 Yellow #24 1
10 White (big) #12
3
Shell Braid shield
X
