26 Northstar 2 kW Radar Installation Manual
4.4 2 kW radar processor connections

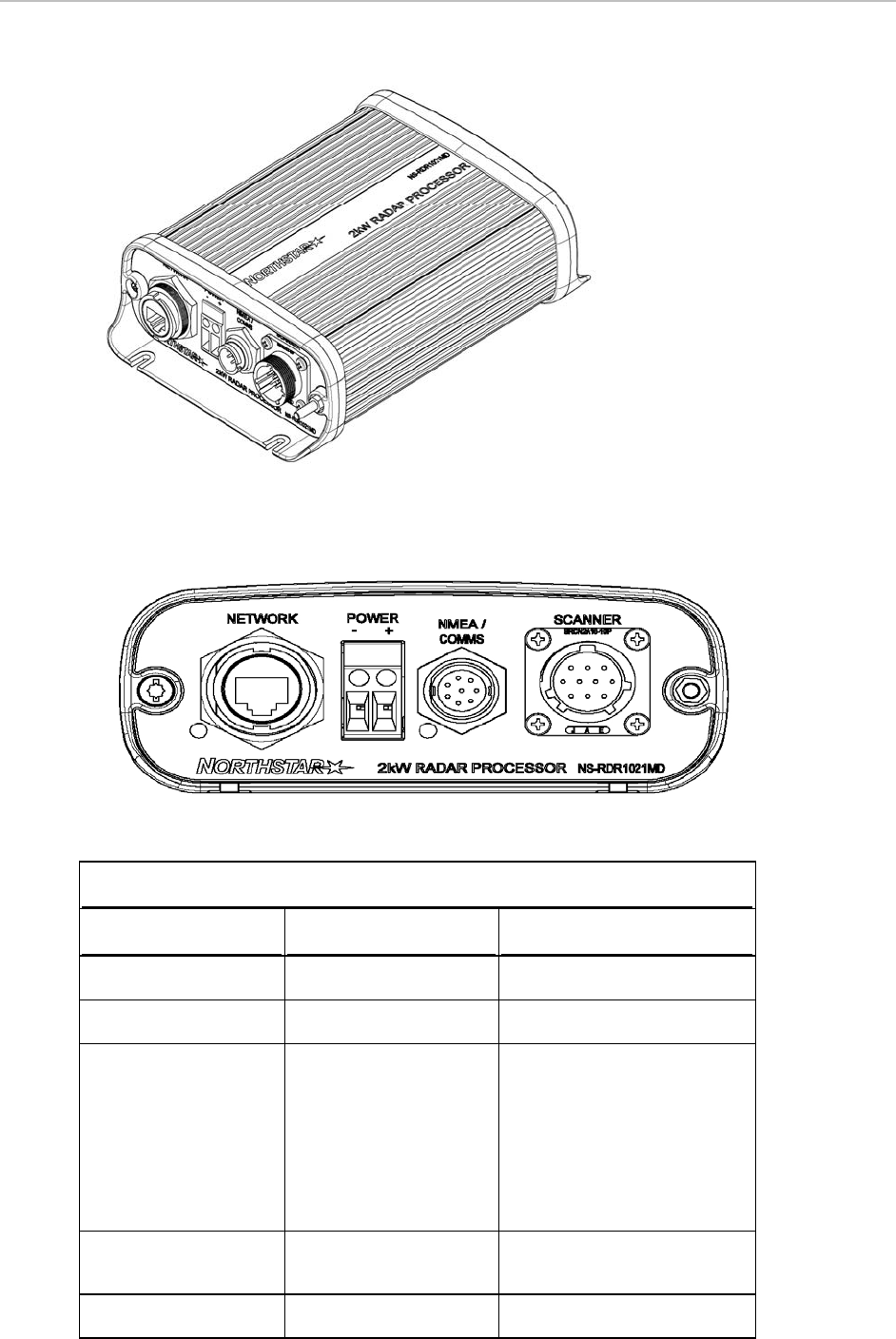

There are four interface connectors on the rear of the 2 kW radar processor, plus a Chassis Earth.
You can connect the radar processor to either the Northstar 6000i or 6100i OR to the Northstar 8000i,
but not to both simultaneously.
2 kW radar processor interface connectors
Connector name Connector function Connects to...
Network Ethernet communications
for the 8000i
8000i network, using the 8000i
network cable (NS00481X)
Power (+ve and -ve) Power input Ship's power 12 V DC ONLY (using
the power cable)
NMEA / Comms Data communications (for
the 6000i and 6100i systems
only)
Remote power control, relay
and ignition (for the 6000i,
6100i, and 8000i)
NMEA communications for
compass (for the 8000i
only).
6000i or 6100i display unit, using
radar communications cable
(NS003107)
6000i, 6100i, or 8000i remote
power signals, relay or ignition;
cable not supplied
8000i NMEA compliant compass;
cable not supplied
Scanner Scanner communications Scanner, using the
interconnection cable (NS003102
or NS003103)
Chassis earth Grounding point Vessel's Ground using ground
wire
