Northstar 2 kW Radar Installation Manual 29
Wire function Free end
Connector 1
6000i/6100i NMEA
Connector 2
NMEA/Comms
Connector 3
Smartcraft
Pin Color Pin Color Pin Color
NMEA 1 IN A Brown 3 Brown
NMEA 1 IN B Blue 1 Blue
NMEA 1 IN GROUND White/Blue 4 White/Blue
NMEA 1 OUT A Violet 12 Violet
NMEA 1 OUT B Gray 7 Gray
NMEA 1 OUT GROUND Blue/White 8 Blue/White
NMEA 2 IN A White/Brown 6* White/Brown 1 Green
NMEA 2 IN B Brown/White 2* Brown/White 2 Red
NMEA 2 IN GROUND White 5* White
NMEA 2 OUT A Yellow 15* Yellow 7 Orange
NMEA 2 OUT B Orange 11* Orange 8 Blue
NMEA 2 OUT GROUND Black 10 Black 12 Yellow
RS-232 GROUND Tan 17* Tan
1 White
RS-232 RX Green 16* Green
3 Green
RS-232 TX Red 18* Red
8 Red
REMOTE SAVE Orange/White 13 Orange/White
6000i or 6100i REMOTE
POWER OUT
Pink 14 Pink
SHIELD Drain 9 Drain 9 Drain
RADAR REMOTE POWER
IN
White/Orange
10 Brown
* See cautions on previous page.

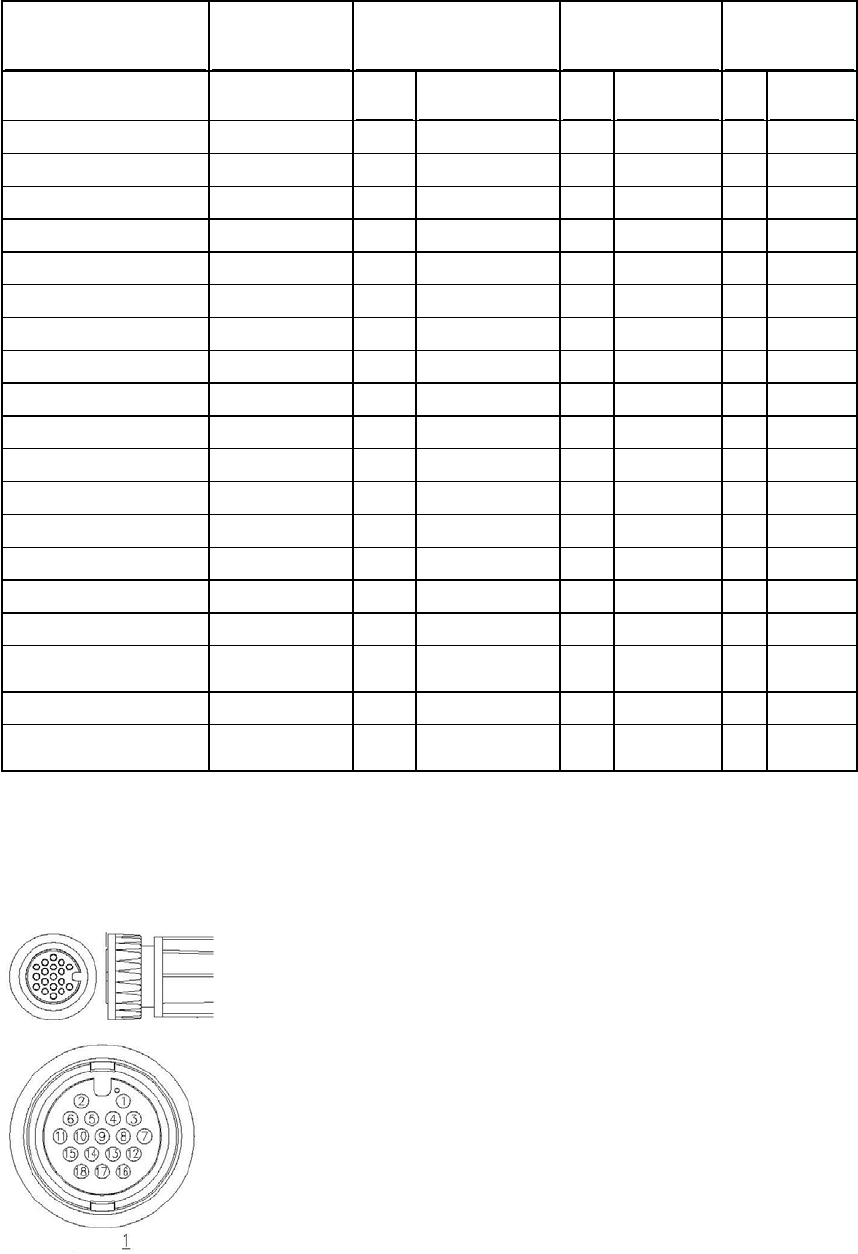

The end view of the three connectors is shown:
Connector 1 - 6100i NMEA pin assignments
