Northstar Explorer 538i/538 Installation and Operation Manual
14

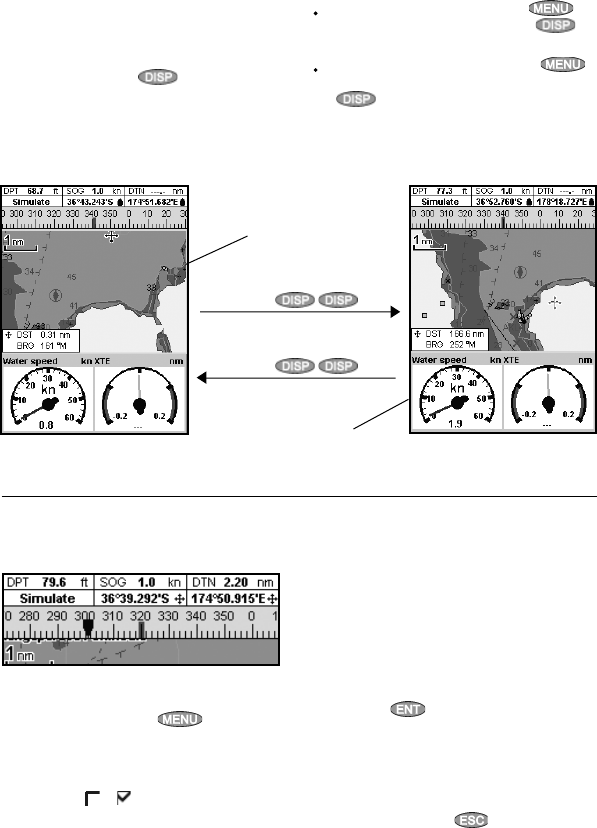

2-8-1 Dual displays
The Explorer 538/538i can show two displays at
once, for example Chart + Gauges. One of the
displays, called the active display, has a yellow
border and is controlled by the user. To change
the active display, press
twice (Highway
cannot be the active display). For example:
If Chart is the active display: press
to
display the options for Chart; press
twice to make Gauges the active display.
If Gauges is the active display: press
wto display the options for Gauges; press
twice to make Chart the active display.
Chart display is
active
Gauges display
is not active
Yellow border
Press
Press
Yellow border
Chart display is
not active
Gauges display is
active
The chart and highway displays can show data at
the top of the display.
The data header for each display can be different.
To change the data header for a display:
1 Go to the display, press
and select
Data header.
2 To turn the data header off or on:
i Select
Data.
ii Select or .
3 To choose the size of the numbers:
i Select Size.
ii Select
Small, Medium or Large.
4 To change the data displayed:
i Select
Data setup.
ii Change a data field:
a Press the cursor keys to highlight the
field.
b Press
to display a menu of data
items.
c Select a data item that is available on your
system or select None to leave the field
empty.
iii Repeat the above step to set the other
data fields. Press
.
2-8-2 Data header
