Interior Dimensions
Instrument Cluster
DIMENSIONS/CLUSTER
This page is about:
24
2007 E-Ser ies Wagon
Interior Dimensions/Instrument Cluster
May 2006
E-Series Wagon

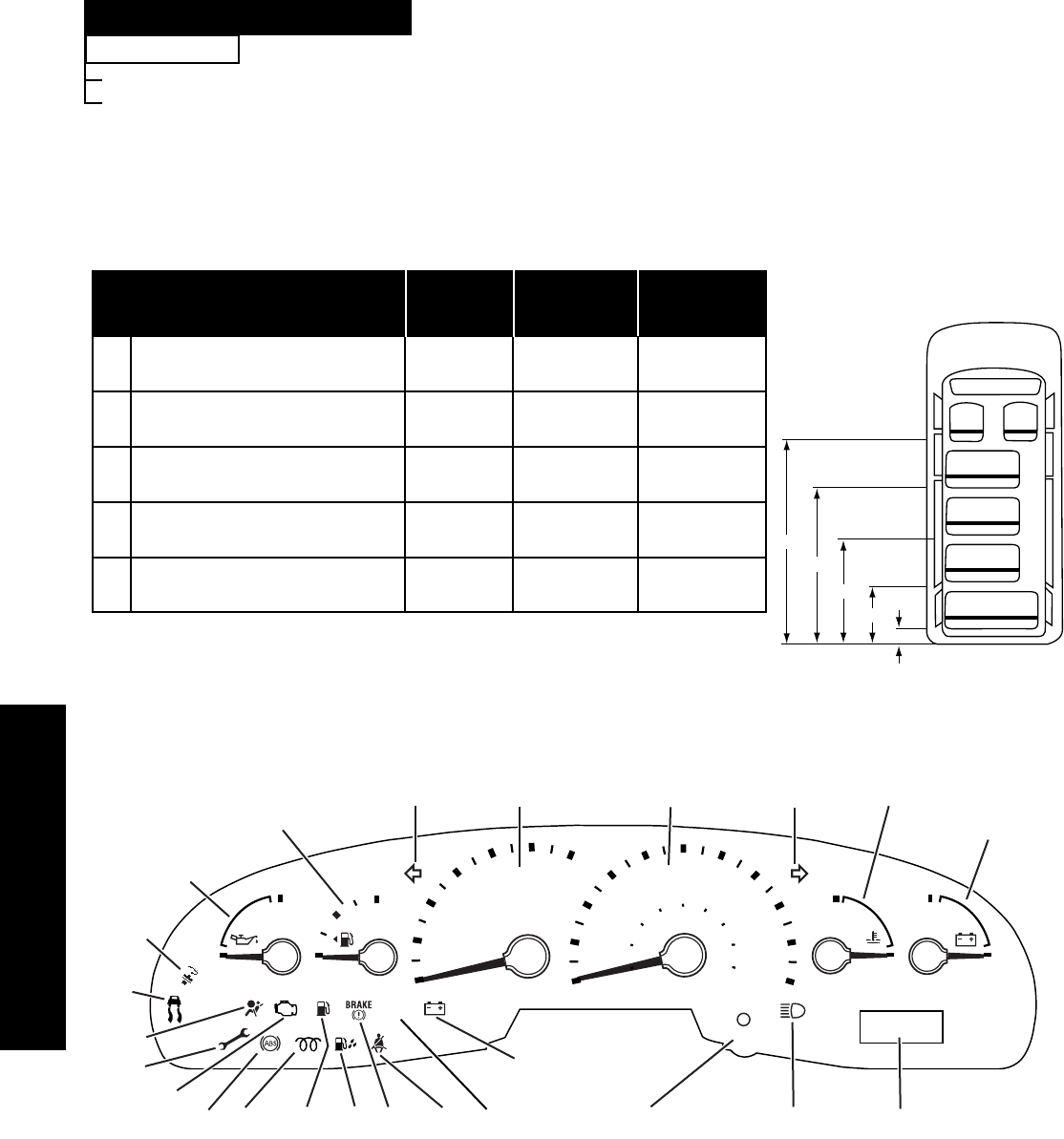

Interior Dimensions
A
B
E
D
C
Regular Extended
Length (in.) Length (in.)
A Inside length — driver seat to @ floor 120.6 140.6
inside of rear door @ beltline 110.3 130.3
B Inside length — rear of first bench @ floor 87.4 107.4
seat to inside of rear door @ beltline 79.6 99.6
C Inside length — rear of second @ floor 53.9 73.9
bench seat to inside of rear door @ beltline 48.5 68.5
D Inside length — rear of third @ floor 20.8 40.8
bench seat to inside of rear door @ beltline 16.4 35.6
E Inside length — rear of fourth @ floor NA 9.8
bench seat to inside of rear door @ beltline NA 5.4
H
LE
F
RPMx1000
H
L
H
C
MPH
km/h
SELECT/RESET
10
0
20
30
40
50
60
70
80
90
100
0
1
2
3
4
5
6
80
60
40
20
0
100
120
140
160
CHECK
GAGE
1
2
3
4
5 6
7
8
10
11
12
13
14
1517
18
19
9
4
22
20
16
21
23
Instrument Cluster
1. Check fuel cap
2. Engine oil pressure gauge
3. Fuel gauge
4. Turn signal indicators
5. Tachometer
6. Speedometer
7. Engine coolant temperature gauge
8. Battery voltage gauge
9. Odometer/trip odometer
10. High beam indicator
11. Odometer/trip odometer
select switch
12. Charging system warning light
13. Check gauges warning light
14. Fasten safety belt warning light
15. Brake system warning light/
parking brake indicator
16. Water in fuel indicator light
(1)
17. Low fuel warning light
18. Wait to start warning light
(1)
19. Anti-lock Braking System
warning light
20. Service engine soon warning light
21. Electronic Throttle Control
warning light
22. Airbag readiness indicator/
warning light
23. AdvanceTrac
®
with RSC
®
(Roll
Stability Control) indicator/
warning light
(1) Diesel engine vehicles.
NA = Information not available at time of publication.
