1800IF - PAGE 3 OF 19
Valvcon Corporation
http://www.valvcon.com
phone: 603-249-9020 fax: 603-249-9140

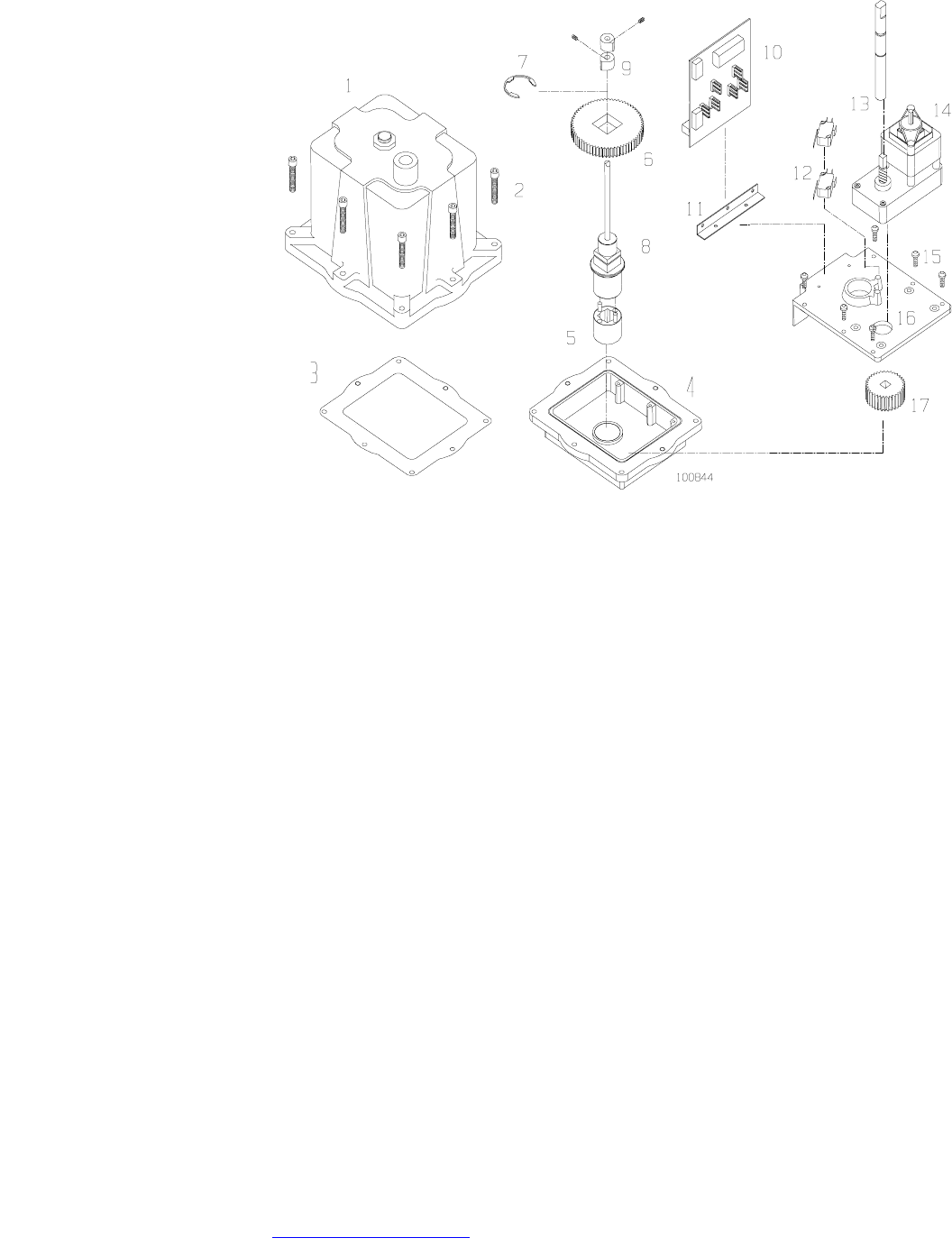

P
ARTS
L
IST
1· Cover
2· Cover Screws
3· Gasket (shown) or O-ring
(weather proof models)
4· Base
5· Output coupling
6· Bull Gear
7· Bull Gear Retaining Ring
8· Output Shaft/Cam Shaft
9· Cams
10· Mother Board
11· Mother Board Bracket
12· Limit Switches
13· Override Shaft
14· Motor Gear Box
15· Motor Support Plate Screws
16· Motor Support Plate
17· Pinion Gear
