Practical hints
Fuses
Removing/installing cover
̈ Twist screws 2 90° counterclock-
wise.
̈ Pull up cover 1.
̈ Slide out retainer 3 and remove cover
by pulling towards front.
̈ Install cover 1 in reverse order.

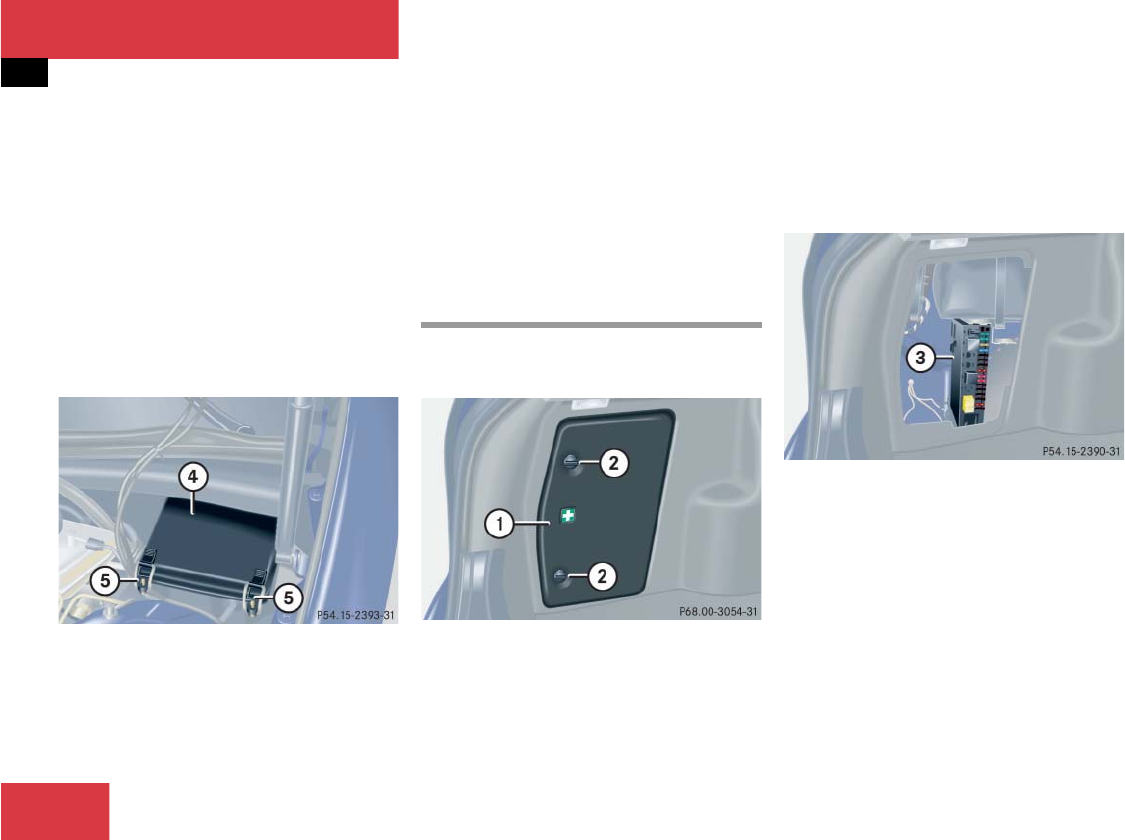

Opening fuse box
4 Fuse box cover
5 Clamps
̈ Release clamps 5.
̈ Remove cover 4.
Closing fuse box
̈ Ensure that the sealing rubber is prop-
erly positioned.
̈ Press the cover down and secure with
clamps 5.
Auxiliary fuse box in trunk
The auxiliary fuse box is located in the
trunk behind the left hand trim panel.
1 Trim panel
2 Handles
Opening trim panel
̈ Turn handles 2.
̈ Remove trim panel 1.
3 Auxiliary fuse box
Fuse extractor
The fuse extractor is found in the cover of
the auxiliary fuse box.
