EN Internal assemblies 81
3 Use the magnetic screwdriver to remove the (2) screws (Figure 6-10, callout 1).
4 Rotate the rear of the Delivery Assembly up and forward, then lift it out of the printer.

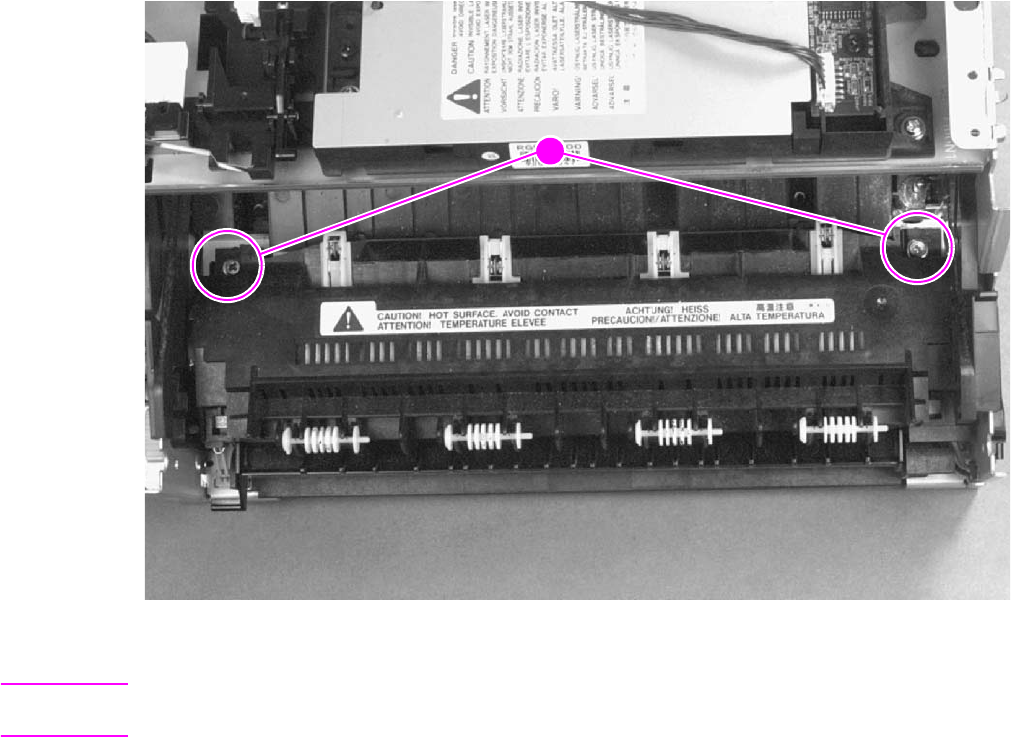

Figure 6-10 Delivery Assembly removal (2 of 2)
Note When reinstalling the Delivery Assembly, make sure that the tabs on the front end of the Delivery
Assembly fit under the sheet metal fuser plate below.
1
