23
Selecting Adjust Antenna Park will place a dialog box in the upper
right-hand corner of the screen. Use Arrow keys to adjust it.
NOTE:
There is no recommended setting for Antenna Park. Use the trial
and error method when adjusting antenna park. Repeat the process
until the antenna comes to a stop in the desired position.
To adjust Antenna Park:
1. Before adjusting Antenna Park, make sure your vessel is stationary.
From the Radar Page, press
MENU, select RADAR SETUP and press ENT.
2. Press →|↓ to

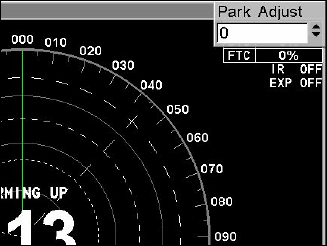

ADJUST ANTENNA PARK and press ENT. The Park Adjust
dialog box will appear in the upper right-hand corner of the screen.
3. Use ← → to input the desired setting.
4. Test your settings by putting the radar into STANDBY Mode. Ob-
serve the location where the antenna stops. Repeat the steps above un-
til the desired location is achieved. Press
EXIT.
You must not be moving when attempting to adjust Antenna Park set-
tings. Your vessel must be stationary for the antenna to stop in the de-
sired position. If you attempt to adjust Antenna Park while the vessel is
underway or if the antenna stops in the desired position and you begin
moving, the wind will move the antenna out of position.
Radar Information
Displays information about the radar, like radar model, radar status
and software information.
To access radar information:
1. Press MENU, highlight RADAR INFORMATION and press ENT. Press EXIT.
