PIT BOSS
Users Manual
16

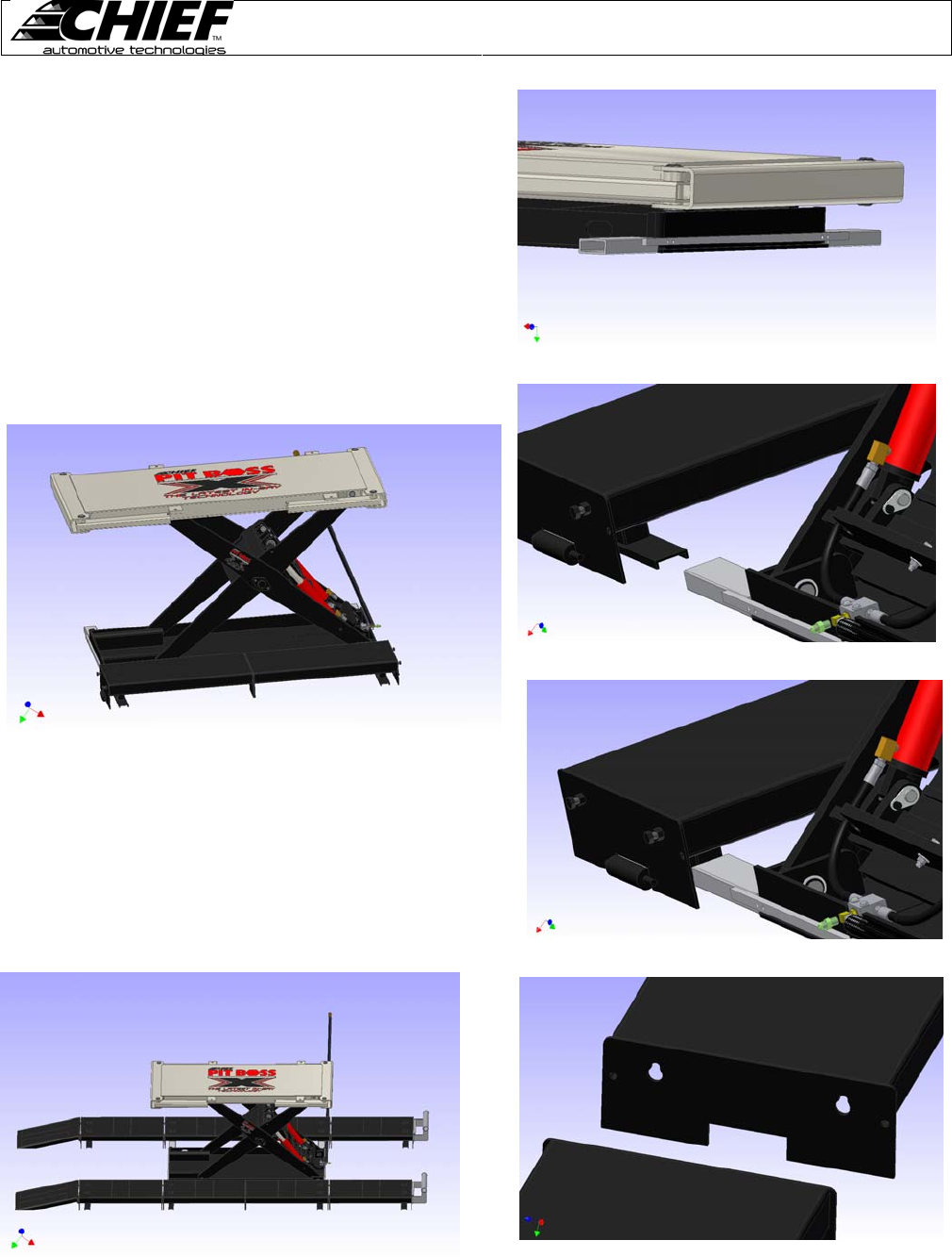

Machine Ramps and Tread ways
The ramps and tread ways are used when the PIT BOSS has not
been placed within a pit. The tread ways give 6 inches of
elevation enabling the vehicle to be driven over the PIT BOSS.
1. Install the tread way locating brackets. The brackets bolt
on the ends of the lift base and are each secured with
two 3/8 bolts (see Figure 33).
2. Each tread way has a piece of channel iron on the
bottom. Select four tread ways without wheel stops and
insert the channel iron of the tread ways completely into
the locating brackets (see Figure 34 and Figure 35). Be
certain the ends of the tread ways with out bolts are away
from each other (see Figure 36).
3. Now repeat step 2 for the other side of the PIT BOSS.
Next locate the two tread ways with wheel stops and
place them at the lift cylinder end. Opposite the wheel
stops are keyholes in the tread ways. Line the keyholes
up with the exposed bolts on the mating tread way and
insert them (see Figure 37).
4. Lock the remaining two tread ways on the opposite end
as the wheel stops. Place the ramps with the slots over
the bolts (see Figure 38).
Figure 38
Figure 36
Figure 33
Figure 34
Figure 35
Figure 37
