AXIS P3364–LV Network Camera

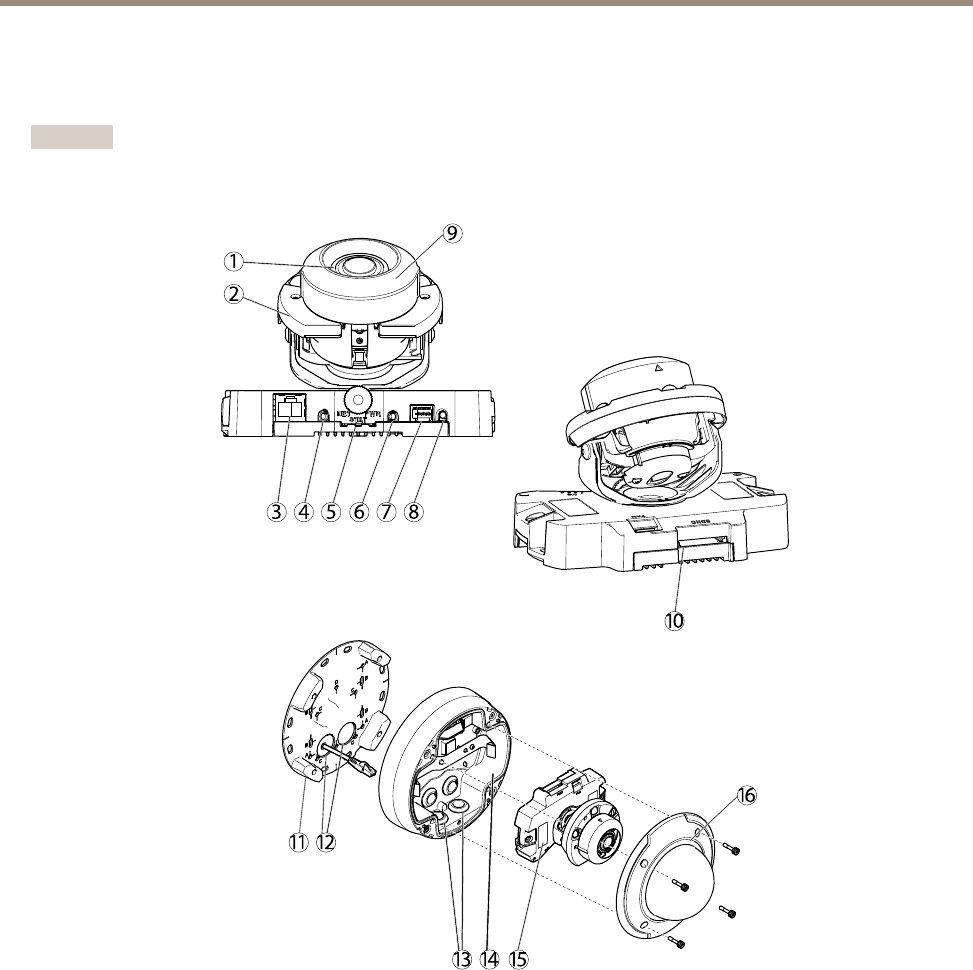

Hardware Overview
Hardware Overview
Important
Make sure the switch under the camera is congured to PoE class 3 with regard to IR illumination, which will not work if
congured otherwise.
12
16
10
1
2
3 4 5 6 7 8
13
14
15
11
9
1.
Heater (only in outdoor model)
2.
IR light
3.
Network connector (PoE)
4.
Audio out
5.
LED indicators
6.
Audio in
7.
I/O connector
8.
Control button
9.
Optical shield
10.
SD memory card slot
11.
Mounting bracket
12.
Holes for cables routed through the wall
13.
Side holes with gaskets for cables routed alongthe wall
14.
Unit casing
7
