22 ST60 Depth Instrument Owner’s Handbook
Connecting the instrument
Types of connection
The ST60 Depth instrument, can be connected:
• As a stand-alone, master instrument connected directly to the depth trans-
ducer.
• As a SeaTalk repeater.
If instruments are connected to SeaTalk, no separate power connection is
necessary. Where a SeaTalk system includes an autopilot, the power for the
system is provided by the autopilot.
A range of Raymarine SeaTalk extension cables is available to connect separated
instruments. These cables are supplied with a SeaTalk connector fitted to each
end. A junction box can be used to join cables.
Signal connections
Make the necessary connections to your ST60 instrument (see the
Connections to
ST60 Depth instrument
illustration).
SeaTalk cable
SeaTalk cable
D4355-2
Cable from transducer
Black
Blue
Screen

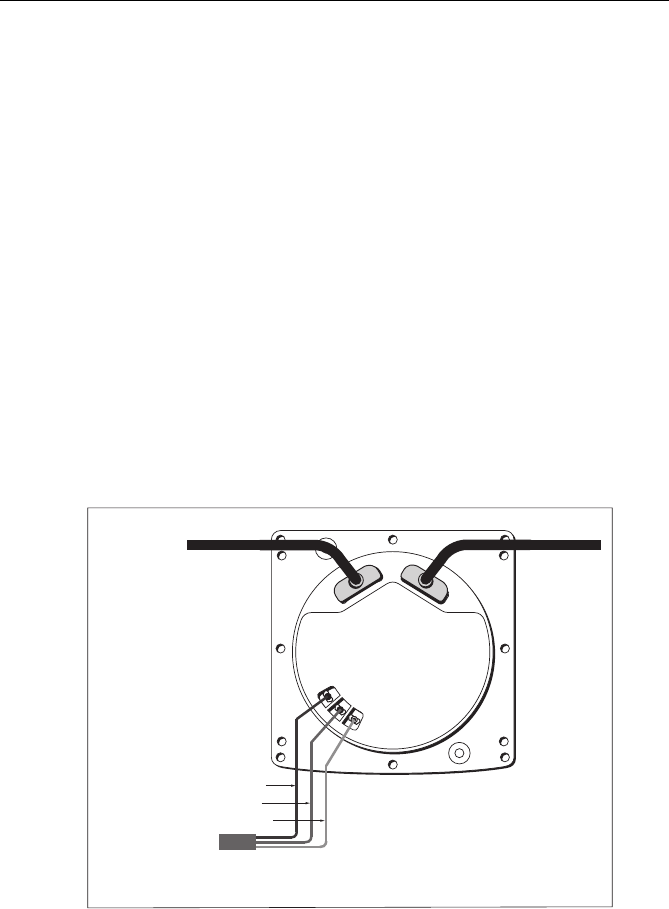

Connections to ST60 Depth instrument
