42
MISCELLANEOUS Screen 3
This is the assigned number
representing the temperature
of the internal components
to control the cooling fan. The
lower the number, the higher
the temperature. 25° C is ap-
proximately a value of 525.
The Err(or) count increas-
es hourly if the MX60
has not charged the
batteries for 26+ hours
continuously. The rst
hour begins at sleeping.
In Float, if the battery volt-
age falls below the ReBulk
voltage set point for at
least 90 seconds, the MX60
will automatically reinitiate
a Bulk charge cycle. The
default is set to a very low
value (6 volts) and there-
fore the function will be
disabled.
+ReBV increments the ReBulk
Voltage. It will return to a 6 volt
value when a 69 volt value is
reached.
(End, -AMP, +AMP) Normally, an Absorb charge cycle is
terminated because the battery voltage was regulated
at the Absorb set point for the maximum time period.
Decreasing (-AMP) or increasing (+AMP) sets an optional
end current level. While the battery voltage is at or above
the Absorb target and the End current level is reached at
a time delay of 15 seconds, the MX60 will switch to the
Float charge stage regardless of the charger time minutes.
The charger timer (ChgT) will be cleared. This is an optional
set point and its adjustment is not required in most
installations. “00” Absorb End amps is the default.
Btmp is a battery temperature
sensor reference value used to
compensate the charging volt-
age. This is an arbitrary number
between 0 and 255 and is not
the actual temperature. An ‘X’
next to this value indicates a
Global external RTS is being used
(system with a HUB and MATE).
The output value
of the internal
current sensor is
used to calculate
output amps,
watts, and track the
Maximum Power
Point of the array.

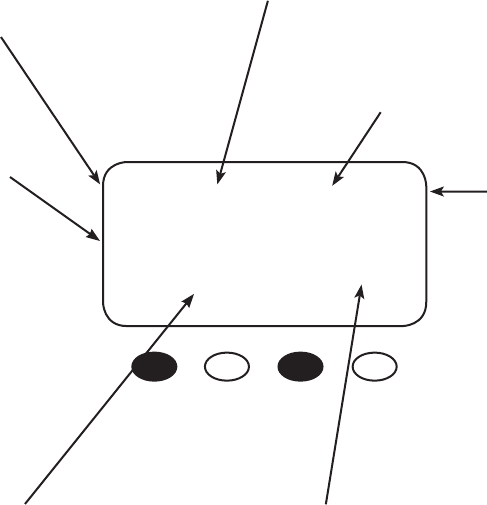

PCB Err Btmp CFB
398 000 255 0760
ReBulk 06 V End 00 A
EXIT +ReBV –AMP +AMP
