Removal and Replacement Procedures
Maintenance and Service Guide 5–31
1. Prepare the notebook for disassembly (Section 5.3) and
remove the following components:
Optical drive (Section 5.7)
Keyboard (Section 5.8)
Keyboard cover (Section 5.9)
Display assembly (Section 5.10)
Top cover (Section 5.11)
2. Release the ZIF connector 1 to which the SD Card
slot/infrared module cable is attached, and then disconnect
the cable 2.
3. Disconnect the right 3 and left 4 speaker cables from the
system board.

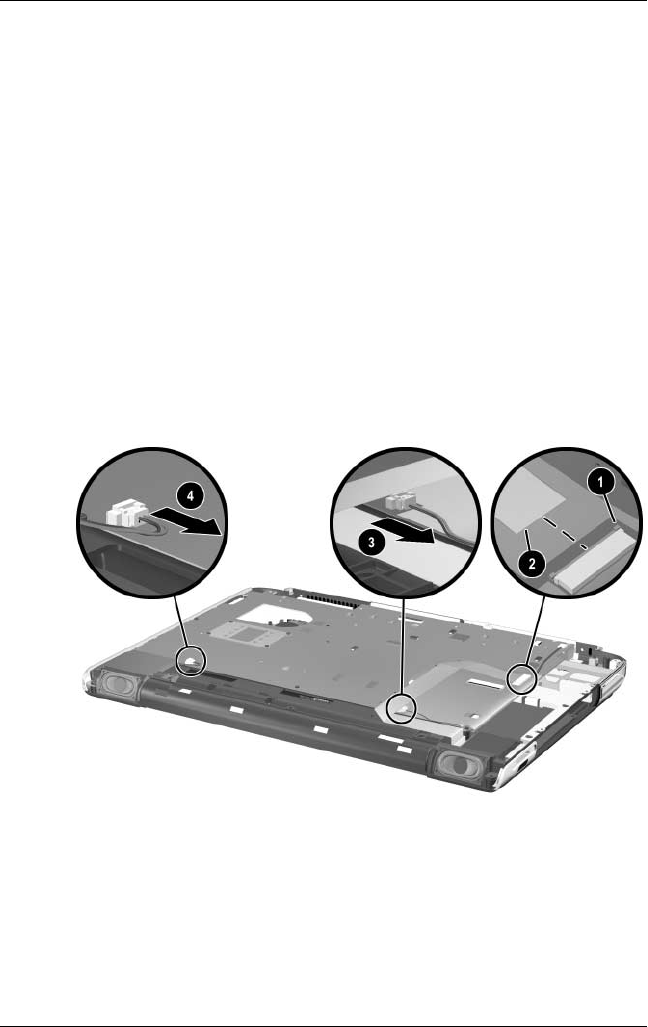

Disconnecting the SD Card Slot/Infrared Module and Speaker
Cables from the System Board
