QGE 100 • Installation and Maintenance 17
Front Panel Features
STATUS
LAN
QGE 100
QUANTUM GRAPHICS ENCODER
1
2
3

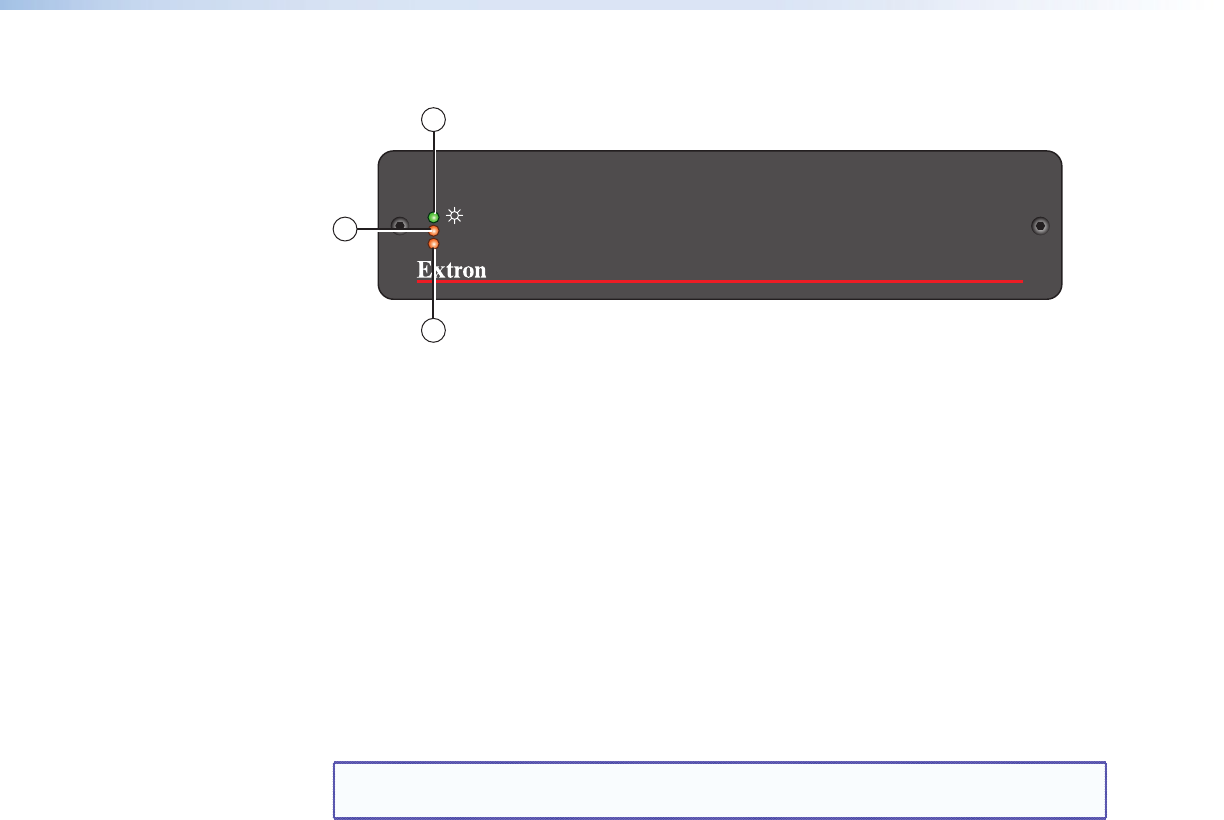

Figure 12. QGE 100 Front Panel
The QGE 100 front panel contains three indicator LEDs:
a Power LED — This green LED lights steadily when the unit is receiving power from
the power supply.
b LAN LED — This orange led indicates the status of the Ethernet connection:
• Blinking irregularly: Data is being transmitted across the network.
• Unlit: No data is being transmitted from the source, or no source is connected.
c Status LED — This orange LED indicates the internal status of the QGE 100:
• Lit steadily: The unit is connected to a valid source and is functioning normally.
• Blinking regularly: The unit is functioning normally, but no source is connected
to it.
• Unlit: The unit is not functioning correctly.
NOTE: When the QGE 100 is powered on, the three LEDs light steadily for
approximately 10 seconds while the unit initializes.
