ENGINE APPLICATION MANUAL GM Powertrain
Gasoline 4.3L V6 90 Degree Revised: 08/15/2000
File: c:\data\manuales\v6-truck\am43v6#3.doc
Contact:Luis Nespolo - (248) 857-1558 Printed: 8/15/00
31

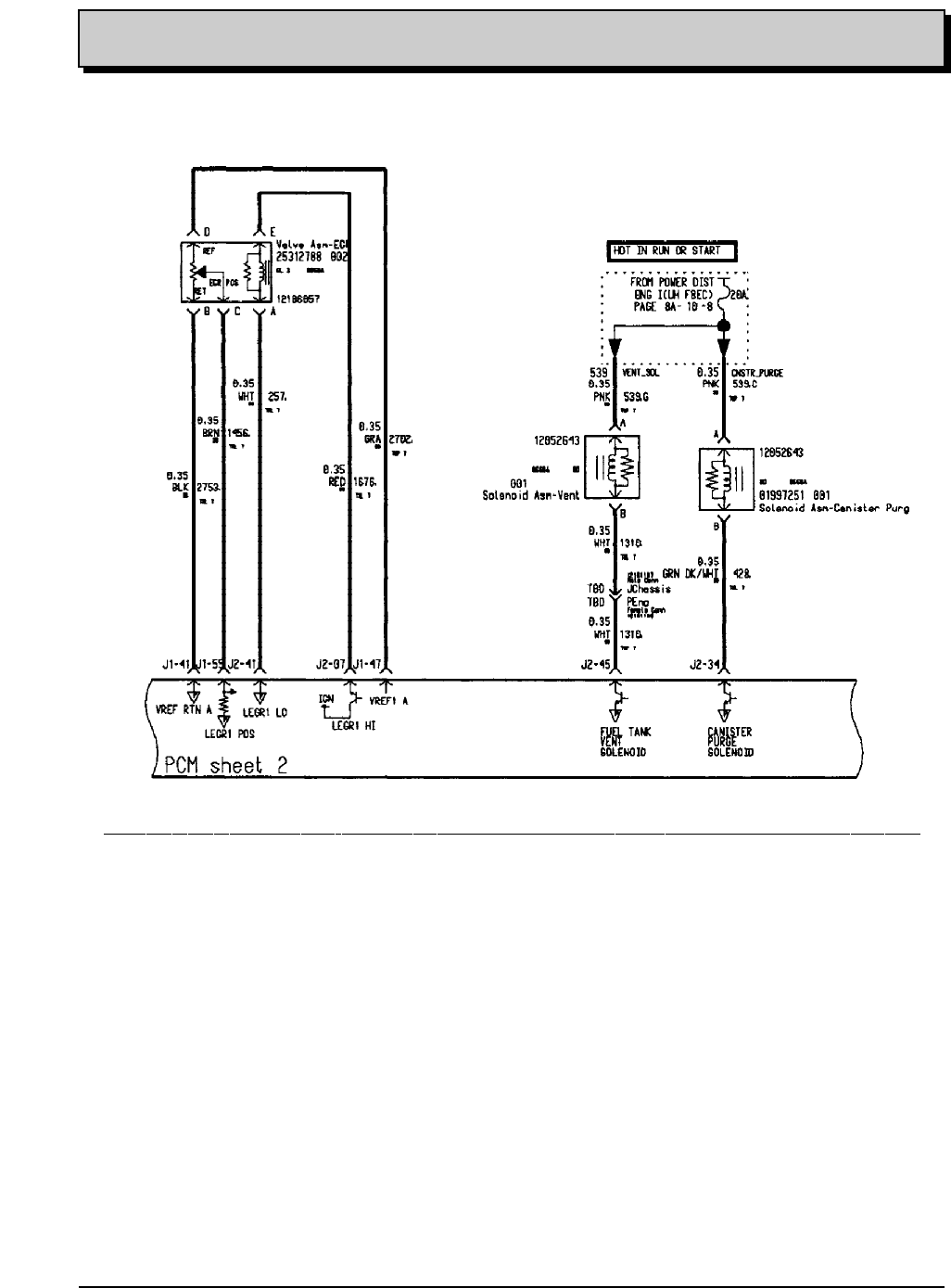

Figure 3.2.1a – II – P/Truck - Mechanization Diagram – EGR, Purge & Vent Solenoid Fuel Canister
