The fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating

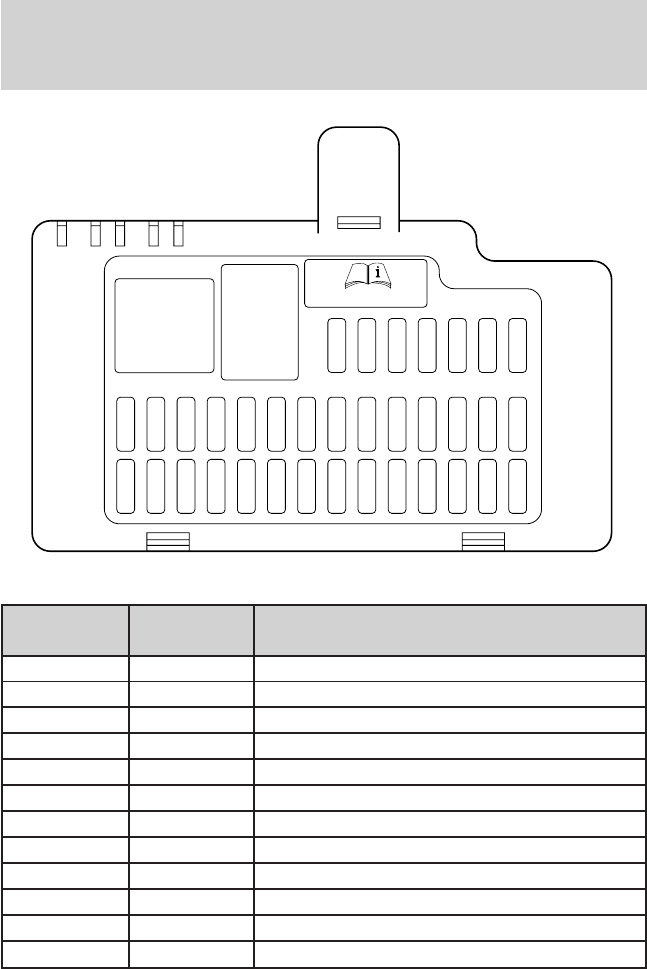

Passenger Compartment Fuse Panel
Description
1 5A Starter relay coil
2 5A Radio start signal
3 5A ABS module
4 5A PCM coil, Cluster and fuel pump relay
5 5A Autolamp system, FEM, T/A switch
6 10A OBD II
7 5A PCM, RKE, Sunload sensor
8 5A Right-hand turn/park/side marker
9 15A Right-hand headlamp
10 5A Left-hand turn/park/side marker
11 15A Left-hand headlamp
12 10A Pad switch
SEE
OWNER'S MANUAL
RELAY 1
REPLACEMENT
FUSES
FUSE 8
FUSE 9
FUSE 10
FUSE 11
FUSE 12
FUSE 13
FUSE 14
FUSE 15
FUSE 16
FUSE 17
FUSE 18
FUSE 19
FUSE 20
FUSE 21
FUSE 1
FUSE 2
FUSE 3
FUSE 4
FUSE 5
FUSE 6
FUSE 7
FUSE 22
FUSE 23
FUSE 24
FUSE 25
FUSE 26
FUSE 27
FUSE 28
FUSE 29
FUSE 30
FUSE 31
FUSE 32
FUSE 33
FUSE 34
FUSE 35
