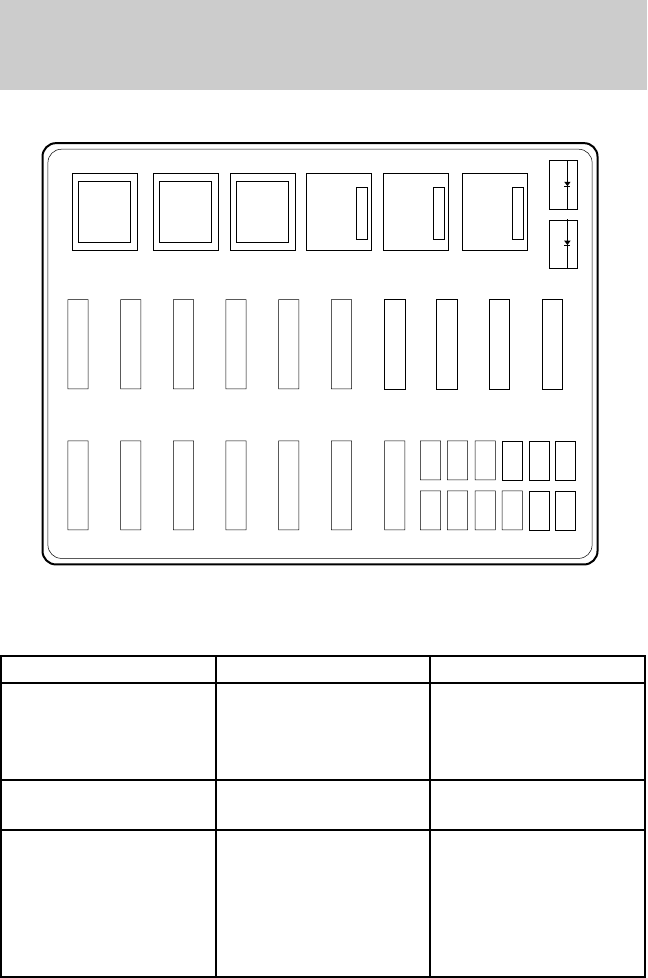

The high-current fuses are coded
as follows.
Fuse/Relay Location Fuse Amp Rating Description
1 20A * Trailer Tow Running
Lamp Relay, Trailer
Tow Backup Lamp
Relay
2 10A* Air Bag Diagnostic
Monitor
3 15A* All Unlock Relay, All
Lock Relay, Driver
Unlock Relay, LH
Power Door Lock
Switch, RH Power
Door Lock Switch
19 29
18 28
EEC
POWER
RELAY
FUEL
PUMP
RELAY
WASHER
PUMP
HORN
RELAY
17 27
16 26
15 25
14 24
13
11 12
910
7
7
8
8
5
5
6
6
3
3
4
4
1
1
2
2
23
22
21
20
W/S/W
RUN/
PARK
W/S/W
HI/LO
Roadside emergencies
139
