Connect with external active antenna*
When operating under the condition that satellite signals are obstructed or blocked
such as inside vehicle. First, locate the external antenna port (MCX female) and
then plug the connector (MCX male) of external active antenna(optional accessory)
into the external antenna port, as indicated in Figure 10. Put the external active
antenna on the roof metal surface of the car, or on the front top-surface of the dash
board where are not affect driving safety and appropriated. Use only the active
antenna(optional accessory) supplied with the BTGPS. Use of other antenna will
severely degrade positioning performance or even damage the receiver. Read “Basic
Guidelines” before using external active antenna accessory.

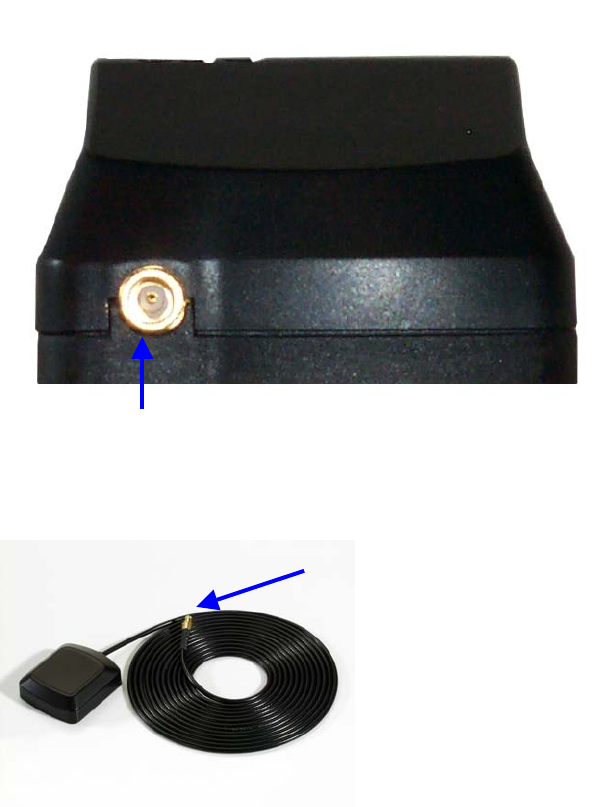

External Antenna Port
(MCX-type/female)
Connector of optional External Active Antenna
(MCX-type/male)
Figure 10
*The external active antenna is an optional accessory which is not included in the package.
23
