/q._:]n=i[o];lifo] _Jill=i_ill_"-]

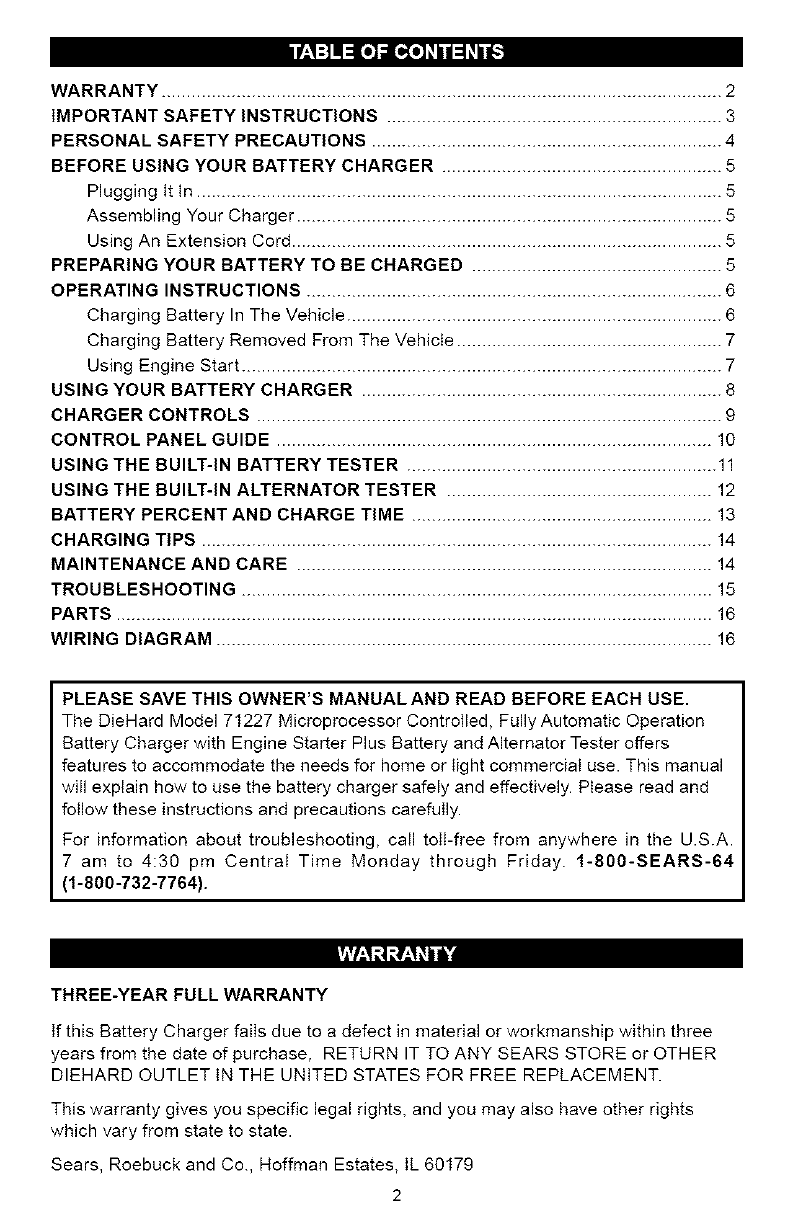

WARRANTY ................................................................................................................ 2
IMPORTANT SAFETY INSTRUCTIONS ................................................................... 3
PERSONAL SAFETY PRECAUTIONS ...................................................................... 4
BEFORE USING YOUR BATTERY CHARGER ........................................................ 5
Plugging It In ......................................................................................................... 5
Assembling Your Charger ..................................................................................... 5
Using An Extension Cord ...................................................................................... 5
PREPARING YOUR BATTERY TO BE CHARGED .................................................. 5
OPERATING INSTRUCTIONS ................................................................................... 6
Charging Battery In The Vehicle ........................................................................... 6
Charging Battery Removed From The Vehicte ..................................................... 7
Using Engine Start ................................................................................................ 7
USING YOUR BATTERY CHARGER ........................................................................ 8
CHARGER CONTROLS ............................................................................................. 9
CONTROL PANEL GUIDE ....................................................................................... 10
USING THE BUILT-IN BATTERY TESTER .............................................................. 11
USING THE BUILT-IN ALTERNATOR TESTER ..................................................... 12
BATTERY PERCENT AND CHARGE TIME ............................................................ 13
CHARGING TIPS ...................................................................................................... 14
MAINTENANCE AND CARE ................................................................................... 14
TROUBLESHOOTING .............................................................................................. 15
PARTS ....................................................................................................................... 16
WIRING DIAGRAM ................................................................................................... 16
PLEASE SAVE THIS OWNER'S MANUAL AND READ BEFORE EACH USE.
The DieHard Model 71227 Microprocessor Controlled, Fully Automatic Operation
Battery Charger with Engine Starter Plus Battery and Alternator Tester offers
features to accommodate the needs for home or tight commercial use. This manual
will explain how to use the battery charger safely and effectively. PIease read and
follow these instructions and precautions carefuily.
For information about troubleshooting, call toII-free from anywhere in the U.S.A.
7 am to 4:30 pm Central Time Monday through Friday. 1-800-SEARS-64
1-800-732-7764).
W/'.Ir,]r,,.'1_IIli'l
THREE-YEAR FULL WARRANTY
If this Battery Charger faiIs due to a defect in material or workmanship within three
years from the date of purchase, RETURN IT TO ANY SEARS STORE or OTHER
DIEHARD OUTLET IN THE UNITED STATES FOR FREE REPLACEMENT.
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
2
